Fine Sand Recycling Machine

Fine Sand Recycling Machine

 Fine sand recovery machine is also called tailing sand recovery machine, fine sand extraction machine, fine sand collector, sediment separator, mud separator, sand-water mixture treatment system, etc.

  • Capacity: 30-250TPH
  • Application: dewatering and recycling fine sand and fine materials slurry materialsbelow 0.16mm. It is widely used in sand and gravelaggregate sandwashingproductionlines,tailings.recycling in mineral processing plants, silica/quartz sand processing systems, etc.

What’s a Fine Sand Recycling Machine?

 Fine sand recovery machine is also called tailing sand recovery machine, fine sand extraction machine, fine sand collector, sediment separator, mud separator, sand-water mixture treatment system, etc. The fine sand recovery machine mainly consists of a motor, a slurry pump, a sediment separator, a cyclone, a TS dewatering screen, a cleaning tank, and a return box. It can also be equipped with a sand washing machine to form a modular sand washing – dewatering – recycling integrated machine.

Working Principle Of Fine Sand Recycling Machine

The slurry pump transports the sand-water mixture to the high-pressure mud and sand separator, and the centrifugally classified and concentrated tailings are supplied to the dewatering screen through the grit nozzle. After dewatering through the dewatering screen, the tailings and water are effectively separated; a small number of tailings and mud return to the cleaning tank through the return box, mix with the mixed liquid returned by the cyclone, and are sent to the cyclone for separation again. When the liquid level in the cleaning tank is too high, it is discharged through the water outlet.

Advantages Of Fine Sand Recycling Machine

  • The fine sand recovery machine can effectively reduce the loss of fine sand during sand washing and control it within 5%-10%.
  • The polyurethane screen used in the dewatering screen lasts longer than others and does not block the holes.
  • The hydrocyclone is lined with polyurethane, which increases the service life of the entire device and can complete slurry concentration, liquid clarification and other tasks.
  • High comprehensive utilization rate, safe and reliable; low power consumption, high efficiency, easy installation and maintenance
  • Use a closed circulating water system to recycle water resources and reduce water consumption.
  • No dust spillage, automatic discharge; while improving economic benefits, it also reduces the environmental pollution of materials, making it more environmentally friendly.
  • It alleviates the problem of coarse sand fineness modulus, improves the situation of unreasonable sand gradation, and improves the quality of finished products.

Structure

The structure of Fine Sand Recycling Machine mainly includes sediment separator, dewatering screen, recycling water tank, conveying device and electrical control system. These parts work together to achieve efficient recovery, dewatering and recycling of fine sand, and at the same time ensure the safe and stable operation of the machine.

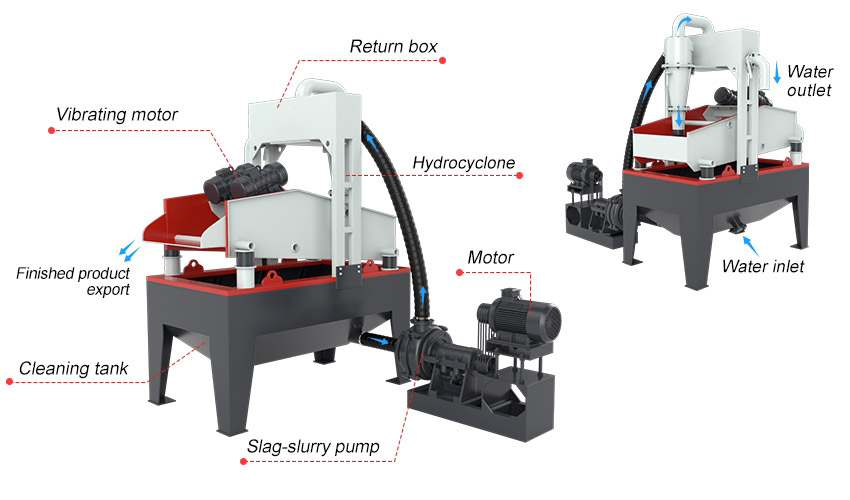

Structure of fine sand recycling machine

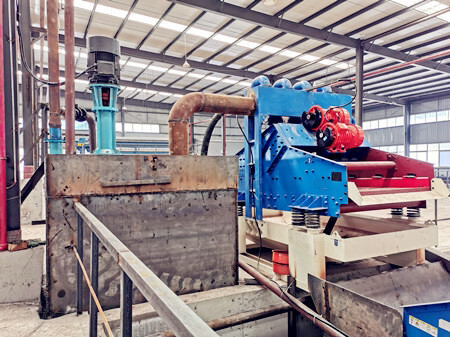

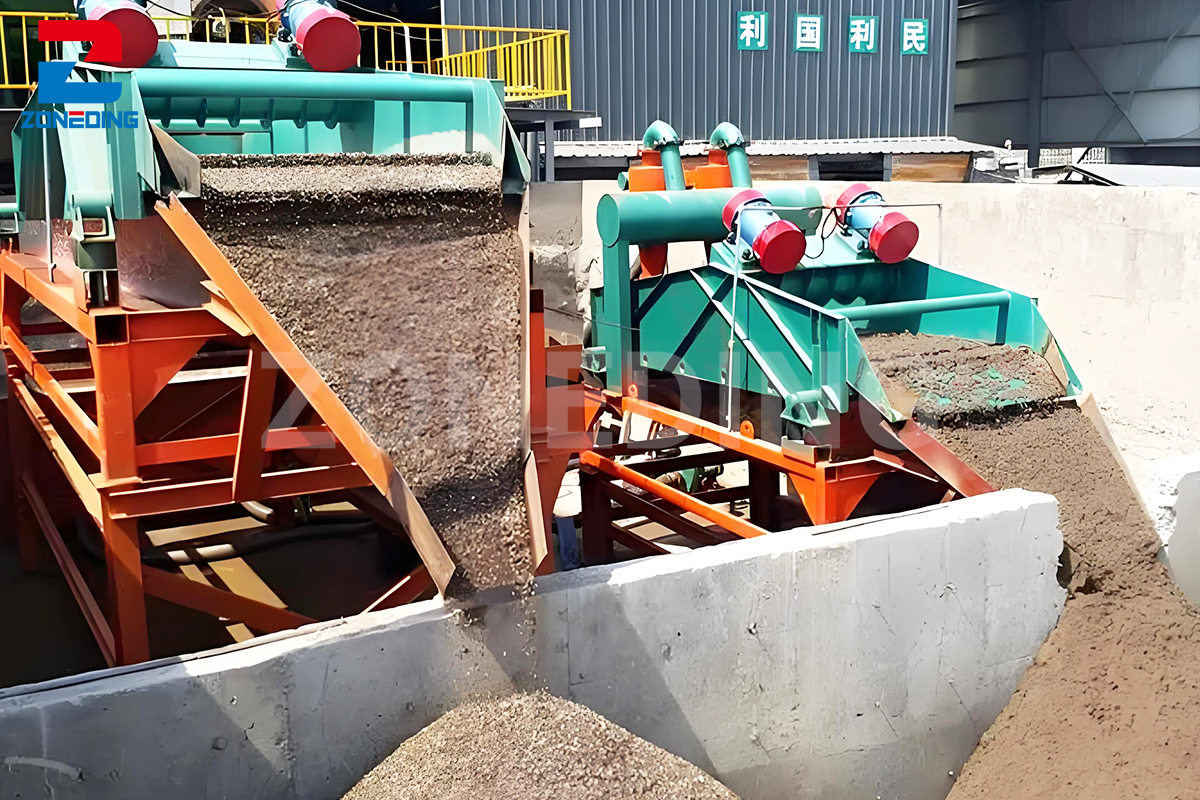

Customer site

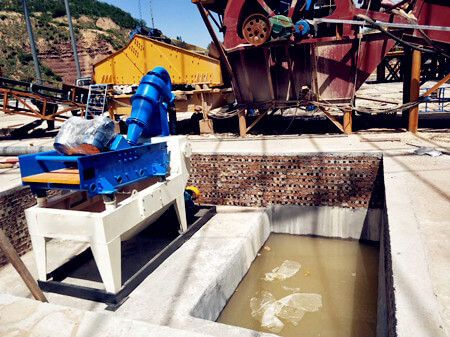

India Customer Site

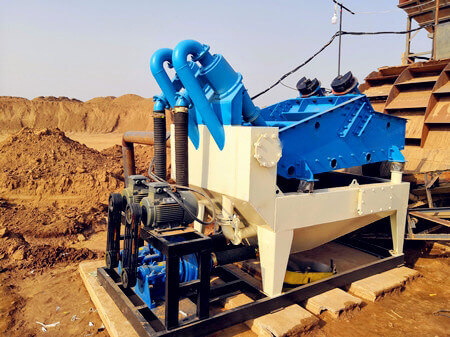

Kenyan customer site

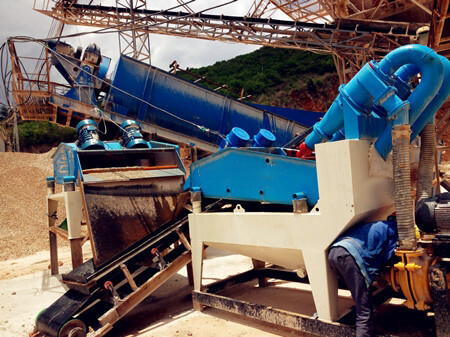

Thailand Customer Site

Specification

ModelDewatering ScreenMotor PowerHydrocycloneSlurry PumpPower of Slurry Pump (kw)Capacity(t/h)
DN12241200*24002.2kw*2φ250*24/3AH15kw30-50
DN15301500*30003kw*2φ300*24/3AH*211kw*250-80
DN18401800*40005.5kw*2φ350*24/3AH*215kw*280-120
DM20452000*450011kw*2φ500*26/4AH*230kw*2120-150
DN22452200*450015kw*2φ500*36/4AH*230kw*2150-200
DN24452400*450018.5kw*2φ500*46/4AH*237kw*2200-250

After-sales service

Equipment installation and commissioning: professional technical team to guide the installation and commissioning, to ensure that the equipment is put into operation smoothly.
Technical training: provide comprehensive technical training and operational guidance to ensure that you master the equipment operating skills.
Warranty service: the main parts of the equipment enjoy warranty service, so that you can buy worry-free.
Maintenance support: provide fast response maintenance support services to ensure that equipment failures are resolved in a timely manner.
Parts supply: provide original parts supply service to ensure the continuous and stable operation of the equipment.
