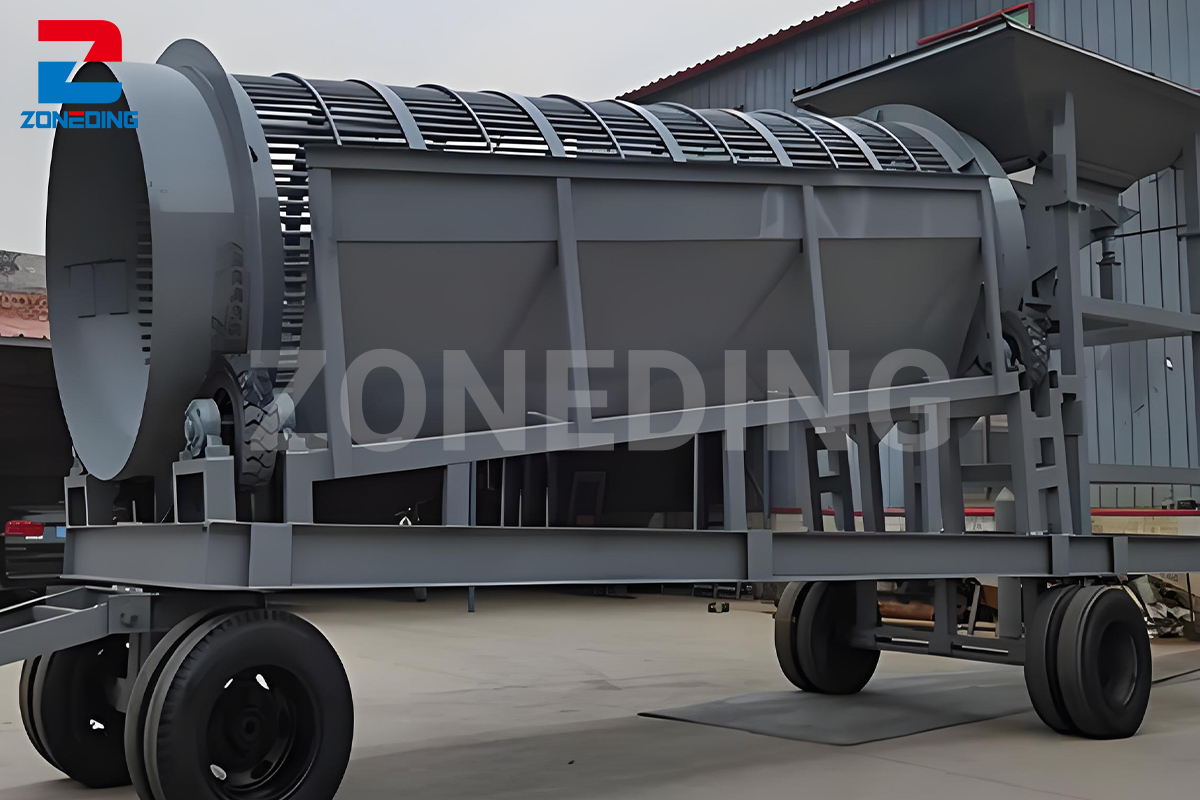

Portable Trommel Screen

Trommel screens are one of the oldest screening devices, their structures are very simple but yet with high sorting accuracy and efficiency.

Capacity: 1-200TPH
Feeding size: ≤80-100mm
Feeding density: 0-50%
Application: Sand and gravel aggregate and ore classifying, screening, washing, processing; gold, diamond ore, silica sand, manganese ore, iron ore, quartz sand and other ore with low mud content.

Get Quotation

Inquiry online

20-Day Delivery and One-Year Warranty

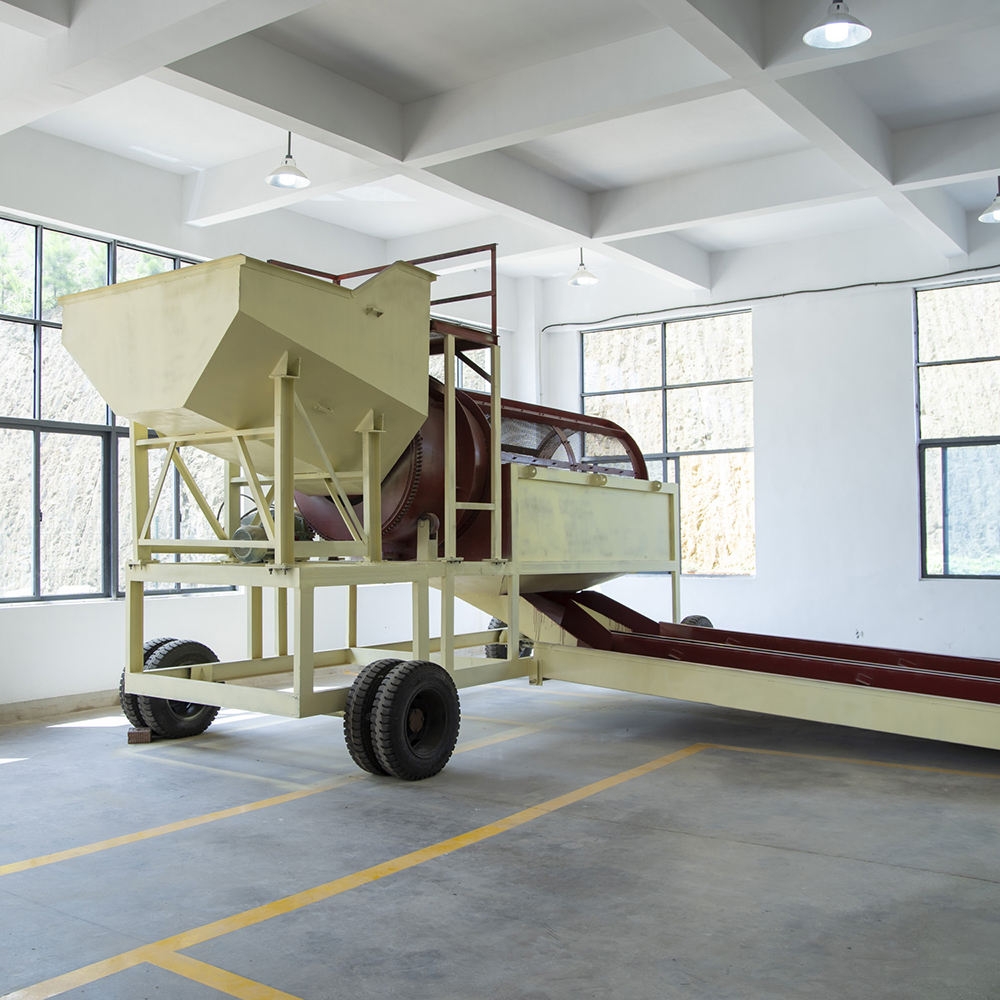

What’s a Gold Mobile Portable Trommel Screen?

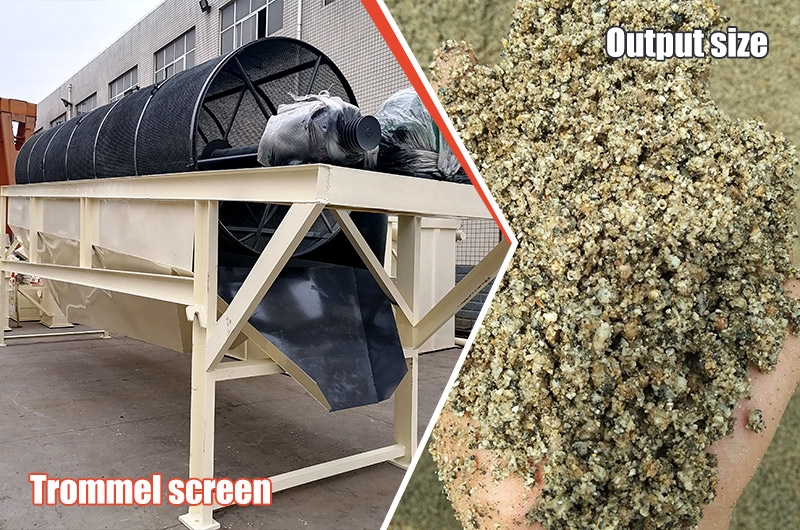

Trommel screens are one of the oldest screening devices, their structures are very simple but yet with high sorting accuracy and efficiency. The gold trommel can washing and screening material from 55 mm down to 6 mm, and even smaller sizes can be handled under wet screening conditions.

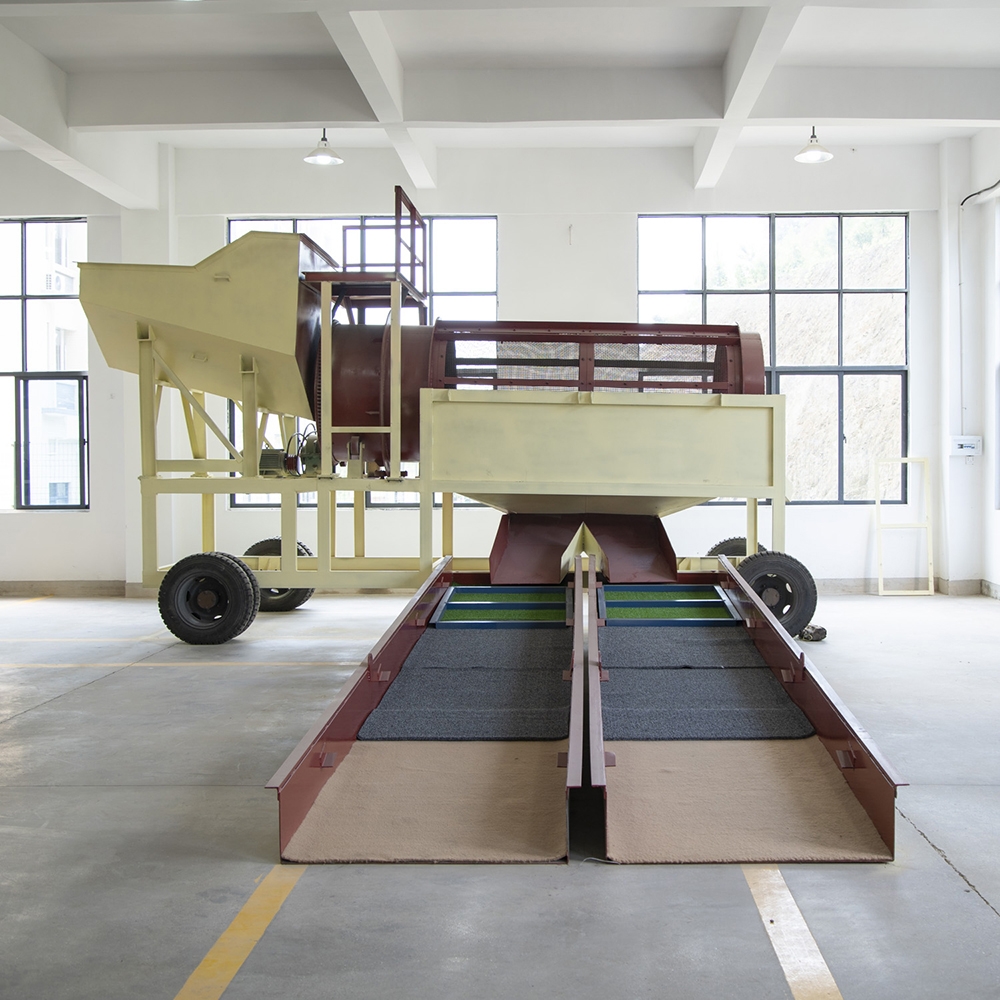

Trommels remain widely used in some screening operation, including aggregate screening plants and the screening of mill discharge streams. They are also used for wet-scrubbing ores, such as Bauxite, alluvial gold, diamond ores and etc. Usually combined with a gold sluice box to form a one-stop small gold wash plant.

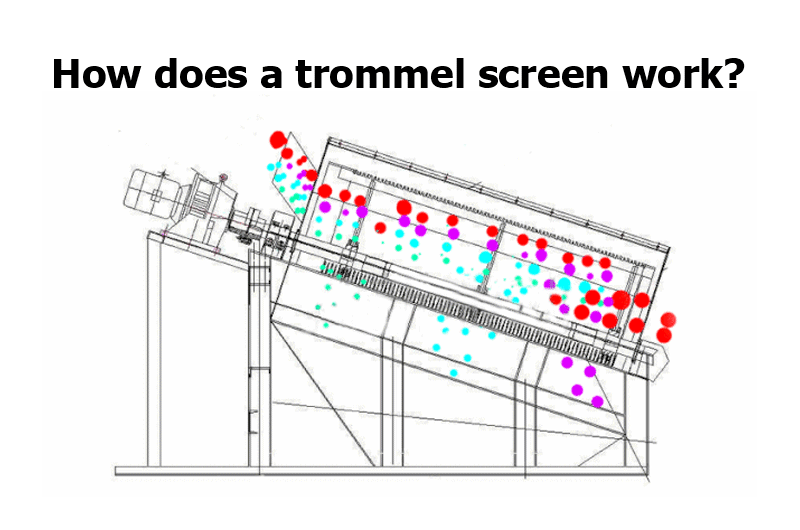

Working Principle Of Portable Trommel Screen

Trommels are installed on a small angle to the horizontal or use a series of internal baffles to transport material along with the cylinder.

When the feeding material enters the roller trommel, due to the tilt and rotation of the trommel, the material on the screen surface is turned and rolled, so that the qualified material (under-screen product) is discharged through the outlet at the bottom of the rear end of the roller, and the unqualified material (upper-screen product) is discharged through the discharge port at the rear of the trommel.

Advantages Of Gold Portable Trommel Screen

The screening efficiency is high, the screen holes are not easily blocked, and the operation is smooth.
Simple structure and easy maintenance.
The portable trommel screen using special screens, high screening efficiency and longer service life can be achieved.
During the operation of the equipment, the noise generated by the materials and the rotating screen is completely isolated by the sealed dust cover, which eliminates the flying dust during the screening process and provides an excellent operating environment; the noise cannot be transmitted to the outside of the equipment, thereby reducing the equipment noise.

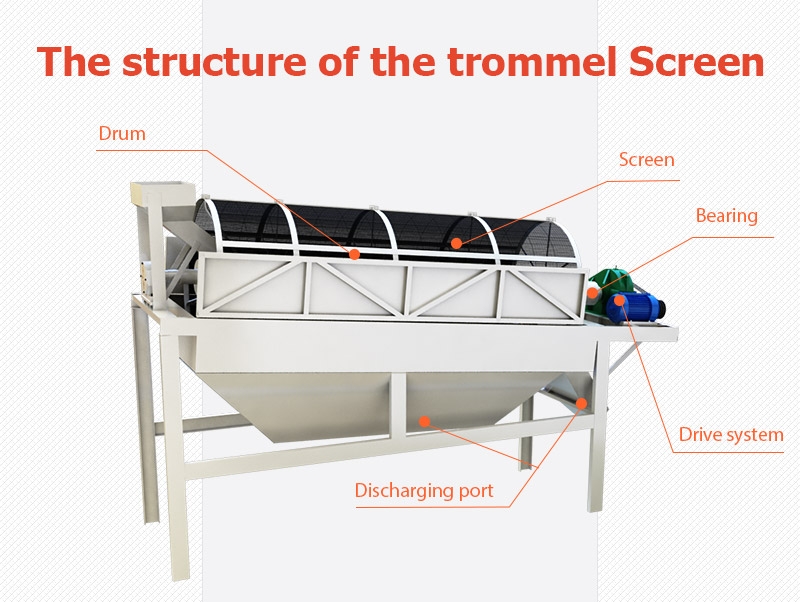

Structure

The drum body of the drum screen is generally divided into several sections, depending on the specific situation, the screen holes are arranged from small to large, and the screen hole diameter on each section is the same.

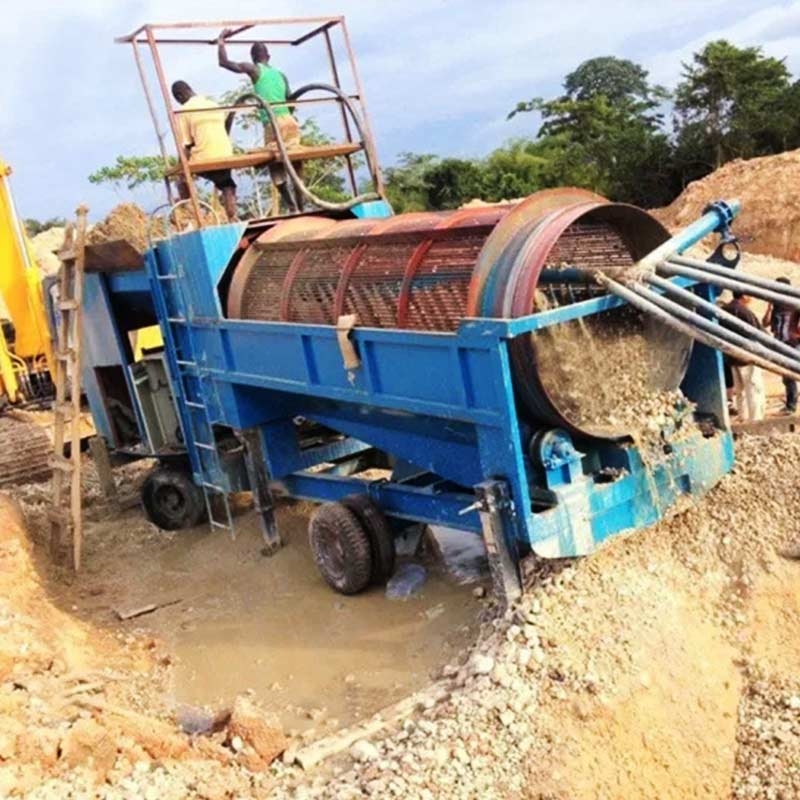

Customer site

Specification

Model	Screen Size(mm)	Feeding Size(mm)	Drum Dia (mm)	Drum length (mm)	Process Capacity(t/h)	Motor Power(kw)
GT0513	≤20	≤80	500	1300	1-5	3
GT0813	≤20	≤80	800	1300	5-10	4
GT1015	≤20	≤80	1000	1500	10-15	5
GT1020	≤25	≤80	1000	2000	15-20	5.5
GT1225	≤25	≤100	1200	2500	20-50	7.5
GT1530	≤25	≤100	1500	3000	40-70	11
GT1545	≤25	≤100	1500	4500	70-100	15
GT1848	≤50	≤100	1800	4800	100-150	22
GT2055	≤50	≤100	2000	5500	150-200	30
