Sand Washing Production LineSand Washing Production Line

  • Capacity: 30-1000TPH / Customizable
  • Main Equipment: feeder, crusher, sand maker, vibrating screen, Belt Conveyors, sand washing machines, dewatering screens, filter presses
  • Application material: Sand washing production lines are often used to clean river sand, lake sand, beach sand, artificial sand, gravel, gravel, limestone, various types of ores/ mineral sand, and even coal processing plant.
  • Application fields: It’s widely used in the production of construction aggregates, quarries, mining, mineral processing, sand making plants, concrete production, highway construction, cement manufacturing, environmental protection facilities and other industries

20-Day Delivery and One-Year Warranty


  • Our sand washing production line can process large amounts of raw materials in a short period of time;
  • Using energy-saving motors and water circulation systems, energy consumption costs are low;
  • Automatic sand washing and screening greatly improve production efficiency;
  • Adopting a closed design, it can efficiently control the discharge of dust and waste water and cause less pollution.
  • The sand washing production line can be adjusted and configured according to different materials and production needs and customizable.
  • Low loss rate of fine sand, high cleanliness, few impurities, in line with national usage standards;

Sand Washing Production Line Process

Sand washing production lines usually involve a combination of water and mechanical force to remove impurities through the impact and stirring of water, and then separate and recover clean materials.

1. Crushing- sand making- screening: The raw material may contain larger stones, which need to be broken into particles of appropriate size by rock crushers or sand-making machines. Then, the sand and gravel of different particle sizes are separated by vibrating screening equipment to obtain the required sand and gravel size.

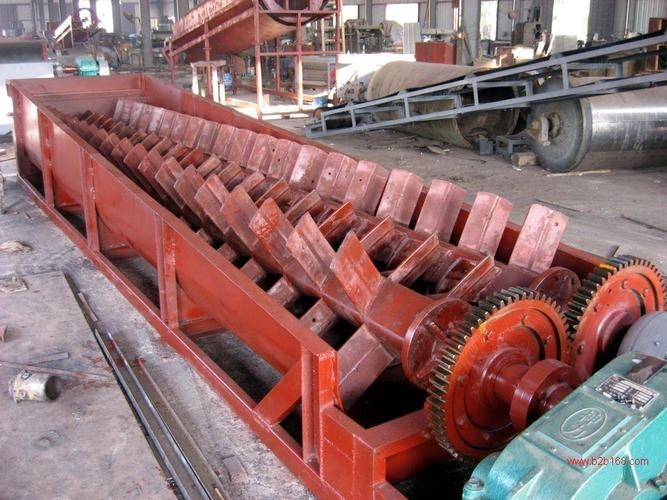

2. Washing process: The screened sand and gravel need to be washed to remove dust; this process uses a spiral or wheel sand washing machine, and water is sprayed onto the sand and gravel to help wash away soil, mud and other impurities. Clean water is usually recycled through the sand washing plant system.

3. Classification and separation: The washed sand and gravel may still contain particles of different sizes; therefore, screening equipment needs to be used again to separate the sand and gravel into grades of different sizes to meet the requirements of different uses.

4. Dehydration-drying: If necessary, the washed sand is usually passed through a dewatering screen or filter press to remove moisture from the sand and gravel so that the product meets quality standards. Once the impurities are separated, the clean water can be recycled and used again in the washing process.

To meet environmental standards, some sand washing plants may also need to take measures to control dust and wastewater discharge. Therefore, relevant regulatory and environmental requirements need to be taken into consideration when designing and operating a sand washing plant. can customize different types of sand washing line equipment according to the type and requirements of the materials processed to meet the needs of various industries.
