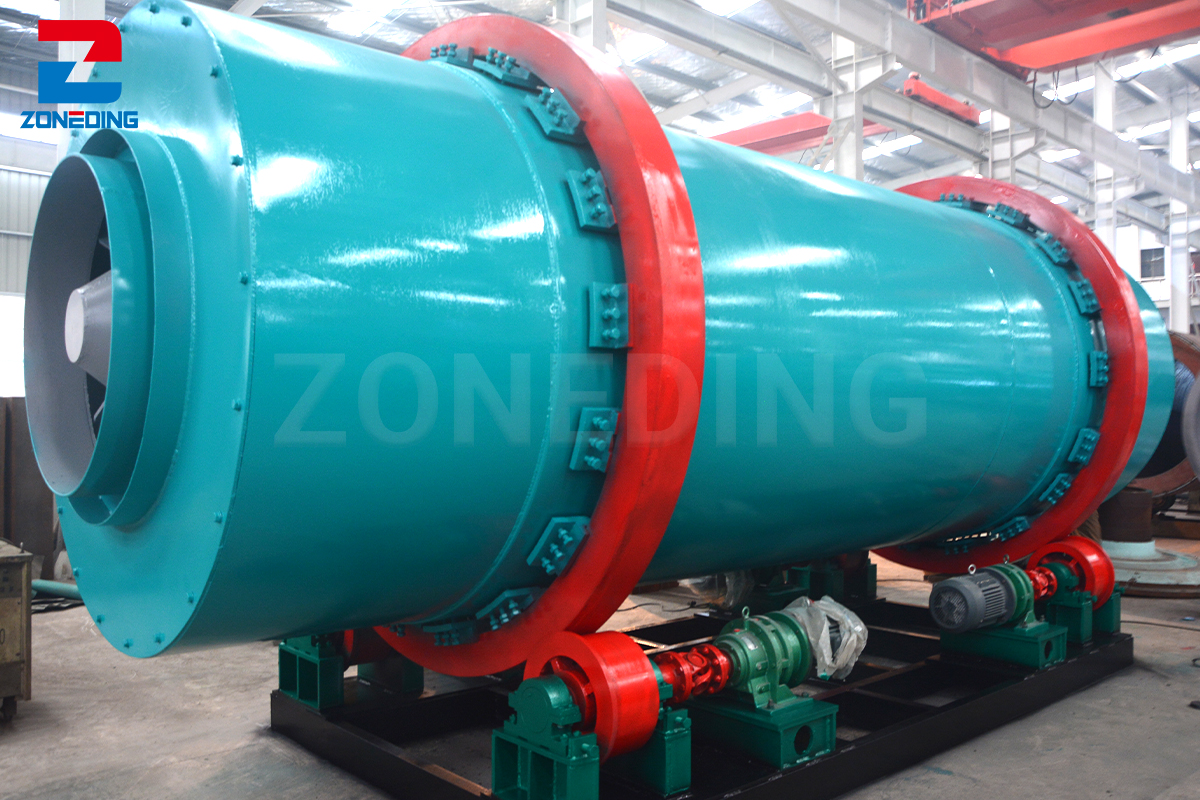

Triple pass rotary drum dryer, also known as three drum dryer, differs in structure from a single pass drum dryer. It consists of three drums of varying diameters nested together, forming three drying chambers: an inner layer, a middle layer, and an outer layer. Unlike single pass drum dryers, triple pass dryers do not require to be set on a sloped base or rely on gravity to move materials. Instead, they rely on pneumatic conveying within the drums to loosen materials to specified positions. The notable advantages of a triple pass drum dryer include shorter drum length, smaller size, lighter weight, space-saving, flexible temperature control, and versatility, making it suitable for drying various high-moisture materials such as sand, biomass, and more.
Applications of Three-Drum Dryer
Three-drum dryer is widely used in building materials industry, metallurgical industry, mineral processing industry, chemical industry, cement and other industries. It is suitable for the drying of various granules and powders in the above industries. After drying, the humidity of the material can reach below 1%. Some application examples of three-drum dryers:
Yellow sand in the dry mortar industry and full-size artificial sand in the foundry industry
Sandblasted surface slag, limestone and quartz/silica sand in the building materials and cement industries
Chemical industry residues, concentrates and tailings
Coal slime, raw coal, flotation coal concentrate and blended coal in the coal industry
Other wet granular materials such as metal powder, fly ash, river sand, gypsum, etc.

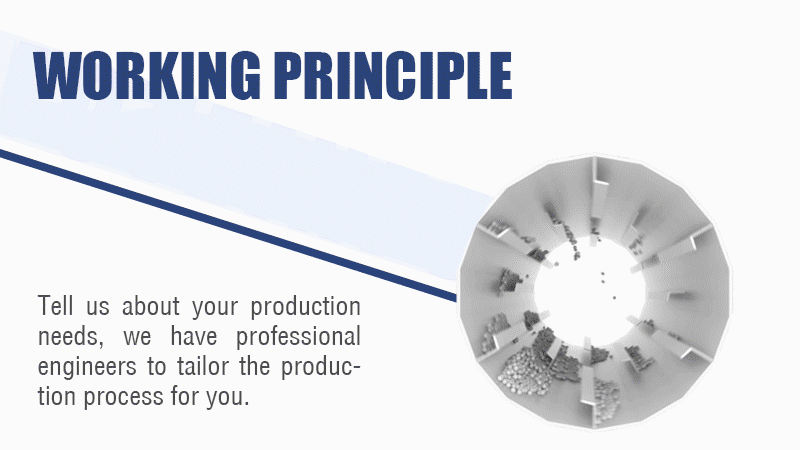

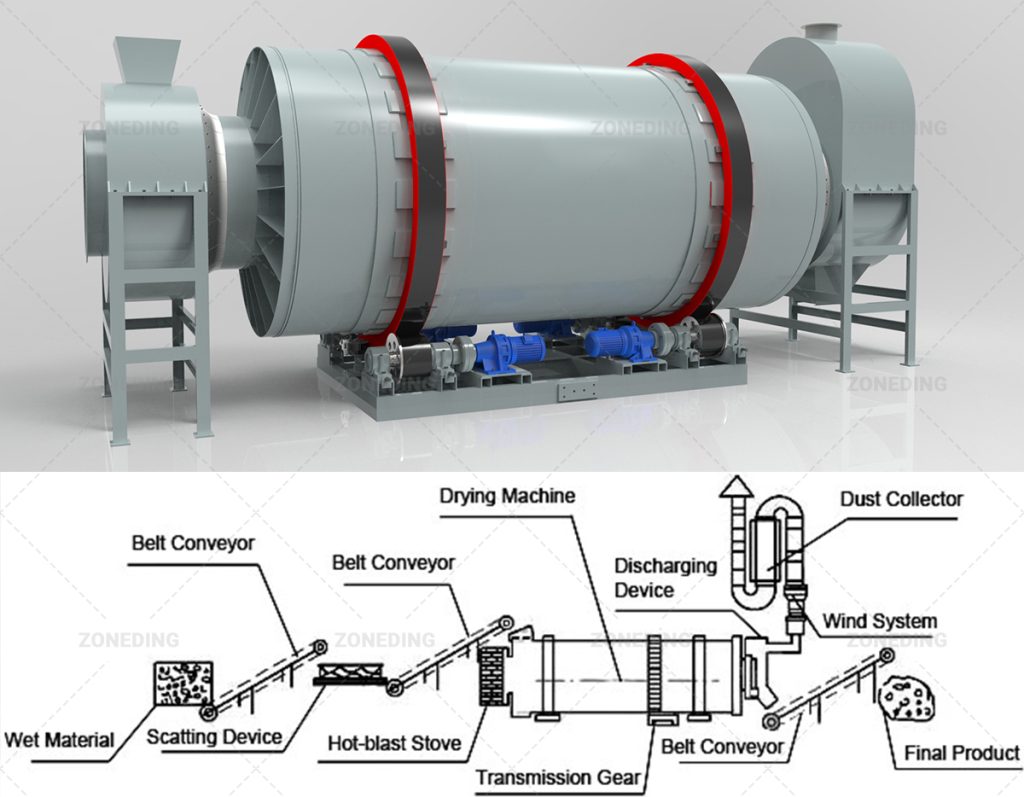

How Three-Cylinder Dryer Works?
Radiation, convection, and heat conduction are mainly used in the drying process. The dryer is set at an angle to take advantage of gravity. When the hot air in the oven reaches the set temperature, the dryer works according to the order of the PC system. The wet pellets are then evenly fed into the inner layer by the feeder and carried away by the gale. The wet material is spirally conveyed through the fixed shovel plate. Next, the material moves to the other end of the oven and into the middle layer. This time, the wet powder inside leaned against the blower and moved forward, taking two steps back. In the middle layer, the heat from the inner and middle layers is fully utilized, which increases the drying efficiency to the optimum. Finally, the dried material reaches the other end of the middle layer and enters the outer layer in a rectangular and multi-loop pattern. Drying to solidify the moisture of the granular material is blown out of the dryer. The rest move more slowly due to their weight and dry again in the outer layer to the desired humidity. In this way, the drying process is realized.
The structural advantages of the zoned three-drum rotary dryer
A triple pass rotary dryer is a modification of the single pass dryer, where instead of a single drum, three drums are nested together to reduce the overall size of the dryer. During operation, the material and hot airflow sequentially pass through the inner to outer drums. Then, they undergo a zigzag flow pattern within the dryer body, effectively utilizing heat energy to dry the material before being discharged.
The drum of the triple pass dryer is composed of three coaxially arranged inner, middle, and outer drums, making full use of the space within the drum cross-section. Overall, the length of the drum body is approximately 30-35% of that of a single-pass drum dryer, significantly reducing the footprint and factory building area.
The support device of the three drum dryer combines the wheel belt on the outer drum with the support roller, driven directly by the motor. The rotation of the drum is achieved through friction between the support roller and the wheel belt. The overall structure is compact, rational, and simple, featuring an axially split design for easy inspection and replacement of worn parts, secured with bolt connections.
The triple pass rotary drum dryer is capable of drying block materials, granular materials, and powdery materials below 20-40mm. The drum is made of wear-resistant manganese plate, which is 3-4 times more durable than ordinary steel plate, effectively extending the service life of the dryer.
General Specification
Triple Pass Rotary Drum Dryer Machine
Model
Volume of the drum(m3)
Drum speed(r/min)
Motor power(kw)
Maximum inlet temperature(℃)
Weight(t)
Capacity(t/h) Yellow sand
Capacity(t/h) Slag
Φ1.5×3
5.3
8-10
3×2
700-750
6.0
4.5-7.5
2.6-4.0
Φ2.0×4
12.6
8-10
5.5×2
700-750
7.4
10.6-17.8
6.2-9.5
Φ2.5×5
24.5
8-10
7.5×2
700-750
15.3
20.6-34.7
12-18.4
Φ2.8×6
36.9
8-10
7.5×4
700-750
32
31.1-52.2
18.1-27.7
Φ3.2×8
64.3
8-10
15×4
700-750
43
54.1-91
31.6-48.3
Φ3.6×10
81.4
8-10
22×4
700-750
48
68.5-115
40-61.2

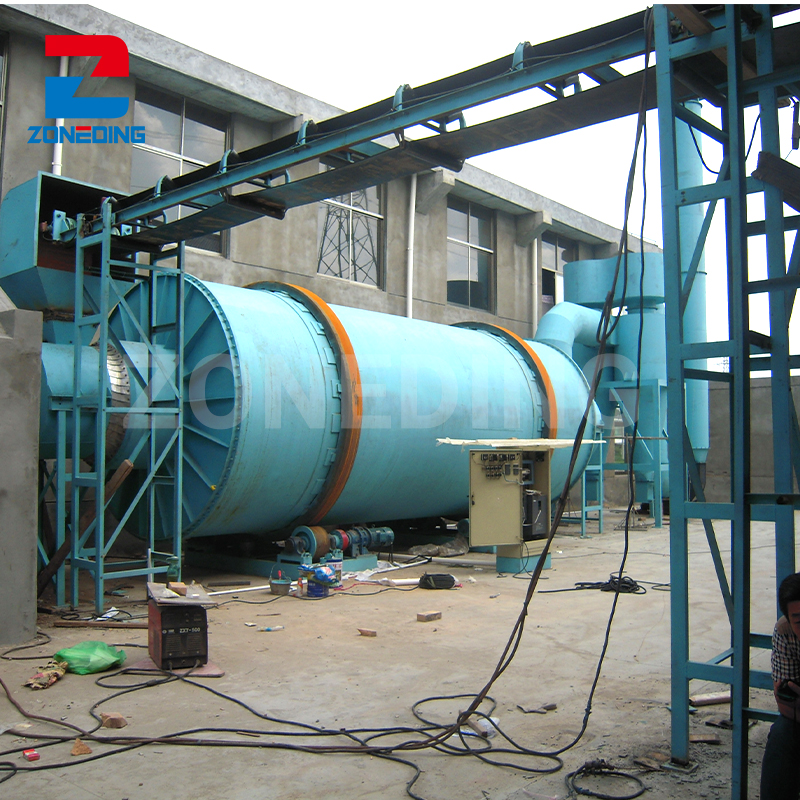

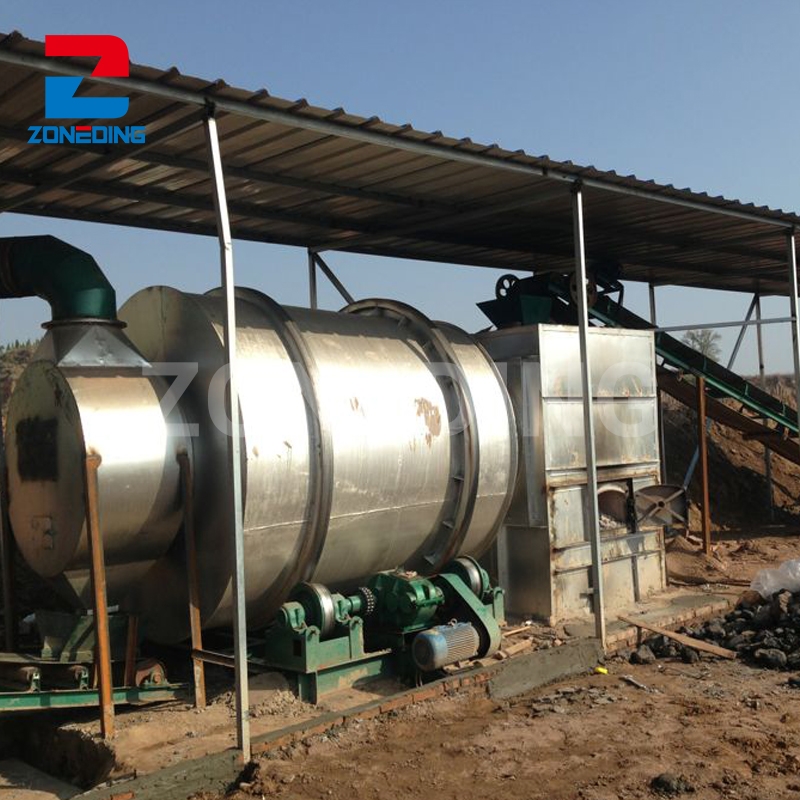

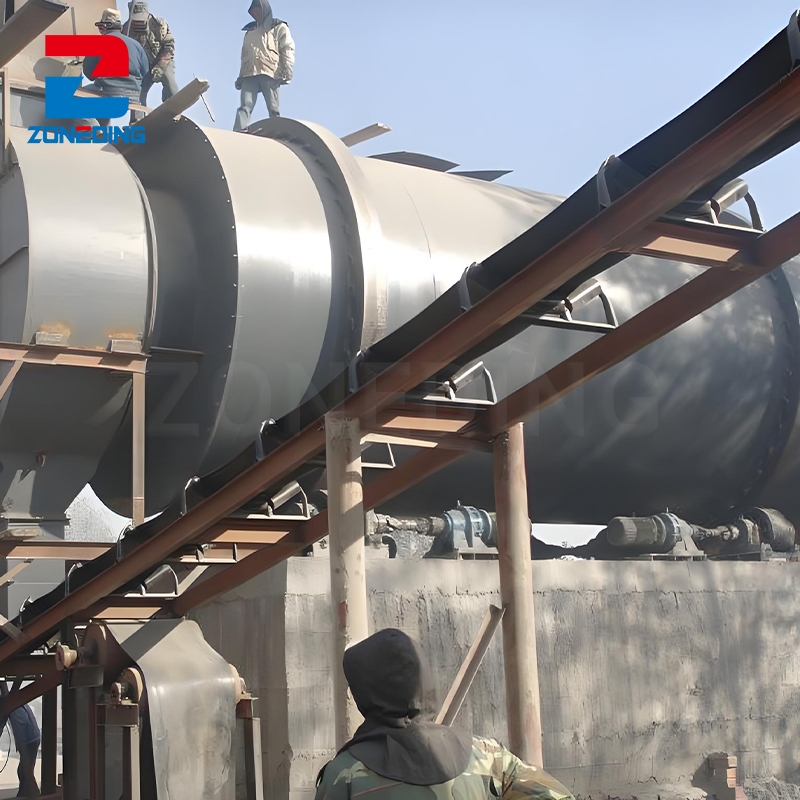

Customer Site
How to Choose Type of Dryer, Single Pass Dryer vs. Triple Pass Dryer?
Both triple pass rotary drum dryers and single pass dryers are rotary drying equipment used in various industries for drying processes, aiming to reduce the moisture content of materials. Below, we will compare the similarities and differences between the two in terms of their structure, operation, material retention time, as well as price, and applicable materials.
Triple pass rotary dryer
Structure: The drum of the triple pass drum dryer is composed of three lightweight drums arranged in a sleeve shape.
Operation method: The triple pass drum dryer uses pneumatic force to transport materials out of the drum.
Stay time: The triple pass drum dryer achieves a longer stay time through multi-layer cylinder conveying.
Floor area: The triple pass drum dryer consists of three cylinders, which are small in size, light in weight, and have a small floor area.
Operation method: The triple pass drum dryer uses pneumatic force to transport materials out of the drum.
Applicable material type: Suitable for high humidity materials such as sand, biomass, clay, etc.
Investment cost: The investment cost is relatively low.

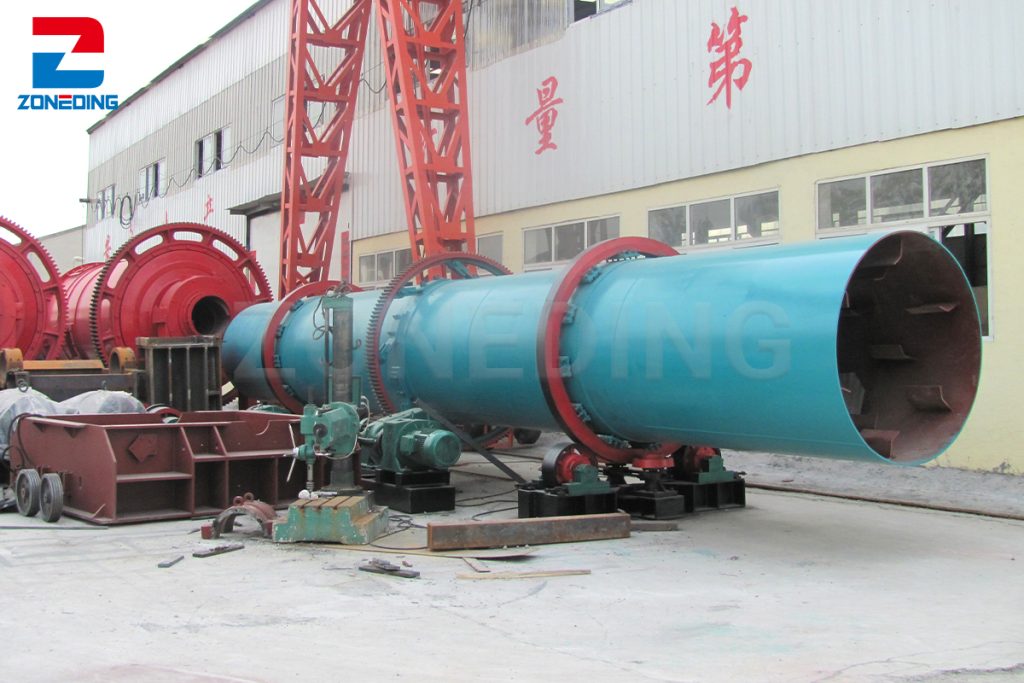

Single pass rotary dryer
Structure: The single pass rotary dryer consists of a single heavy-duty drum.
Operation method: The single pass rotary dryer rotates through a drum and uses gravity and lifting wings to transport materials out of the drum.
Stay time: The single pass dryer achieves long-term stay in the long-distance drying area through a single transfer.
Floor area: The single pass drum dryer has a larger volume, longer length, and a larger floor area.
Applicable material type: Suitable for drying different materials in various industries.
Investment cost: The investment cost is relatively high.
Trusted Sand Dryer Manufacturer——Zoneding
Zoneding is your trusted manufacturer and designer of sand dryers. Over the years, we have accumulated rich experience in the industry, always committed to providing excellent product quality and premium customer service. At Zoneding, we understand the importance of product quality, so we rigorously control every production process to ensure that each piece of equipment meets the highest standards. Furthermore, we prioritize user experience. From manufacturing to delivery, and from installation to commissioning and after-sales service, we have a professional team to follow up on every step, ensuring your user experience is worry-free.
Our product range also includes grinding mills, crushers, conveyors, feeding machine as well as beneficiation equipment, fine sand recycling equipment etc,which are widely applied in electricity, metallurgy, mine and quarry ,wharf, granary, chemical industry. Zoneding can provide you with safe and reliable solutions. Choosing Zoneding means not only getting high-quality products but also experiencing our professional, meticulous, and attentive service. Let’s work together to create a better future!
