Mud And Stone Separator for sale

Debris separator, also known as separating screen, roller screen, butterfly screen, etc. Due to the large mud content of the stone excavated from some sand and stone yards, the use of the stone will cause problems such as crusher blockage, low production capacity, poor sand and stone quality, and the labor cost is too high and the efficiency is low. The mud rock separator produced by our company can not only solve the shortage of sand and stone resources, but also can be quickly separated without water. It can not only replace the traditional feeder and shale shaker, but also open up new vitality for the sand industry.

What is Mud And Stone Separator?

Mud and stone separation equipment is also called multi-stage linkage roller screen. It can control the size and specifications of screening materials by adjusting the gap between the discs to meet the separation and screening of different types of materials. It is suitable for debris separation, soil and stone separation, sand and stone separation, construction garbage separation, etc., it can effectively reduce the load of subsequent sorting equipment.

Product Advantages of Mud and stone separating machine

• Separately driven, each screen shaft is driven separately by a motor reducer, that is, each group of screen shafts has a set of driving devices
• Flexible without jamming, each screen axis rotates in the same direction and has overload capacity. The rotating parts rotate flexibly and there is no jamming phenomenon.
• Used for boiler coal-burning crushing, suitable for boiler coal-burning system and coal mine coal preparation system, pre-screening coal particle size.
• The screen shaft is multi-angled, and the screen shaft is reasonably arranged at multiple angles. The angle between the screen shaft and the horizontal at the entrance section of the equipment is 15 degrees, and the angle between the screen shaft and the horizontal at the exit section is 5 degrees, so that the coal material enters the equipment and the material layer is uniform distributed.

Mud and stone separator working principle and structure

Working Principle:
It is mainly composed of a box, a lining plate, a disc, a transmission shaft, a speed regulating motor, a motor base, a chain
sprocket, a bracket, and other structures.The material is put into the sieve box from the feeding port. The sprocket drives the roller to turn over through the chain, and the material is driven forward by the roller. The soil leaks out from the gap between the adjacent rollers and the disk, and falls onto the belt conveyor at the bottom of the machine to be discharged. The bulk material above the roller moves to the end of the equipment and is discharged, completing the debris separation. The clearance between each shaft can be customized according to actual needs.

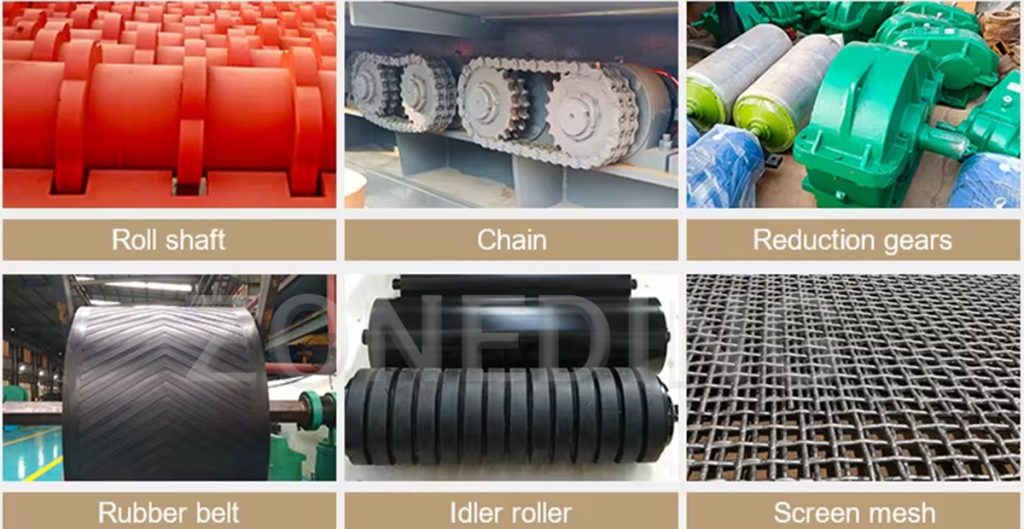

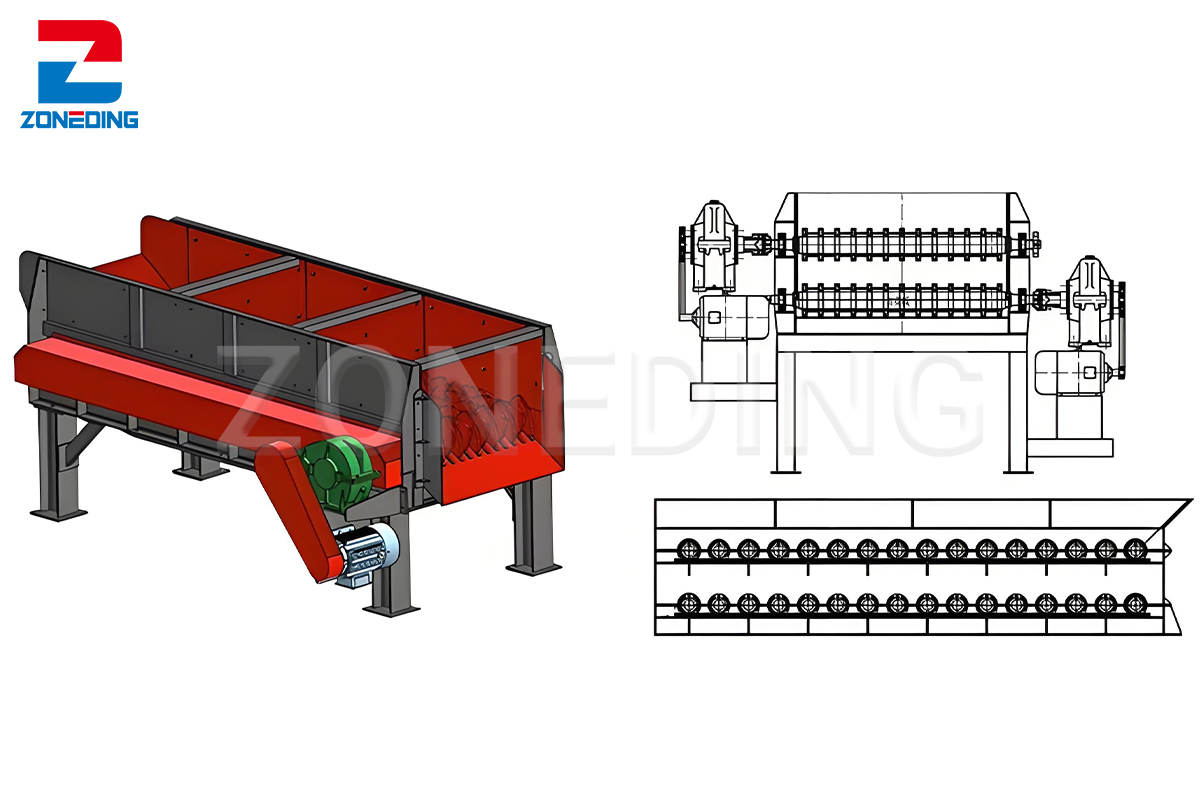

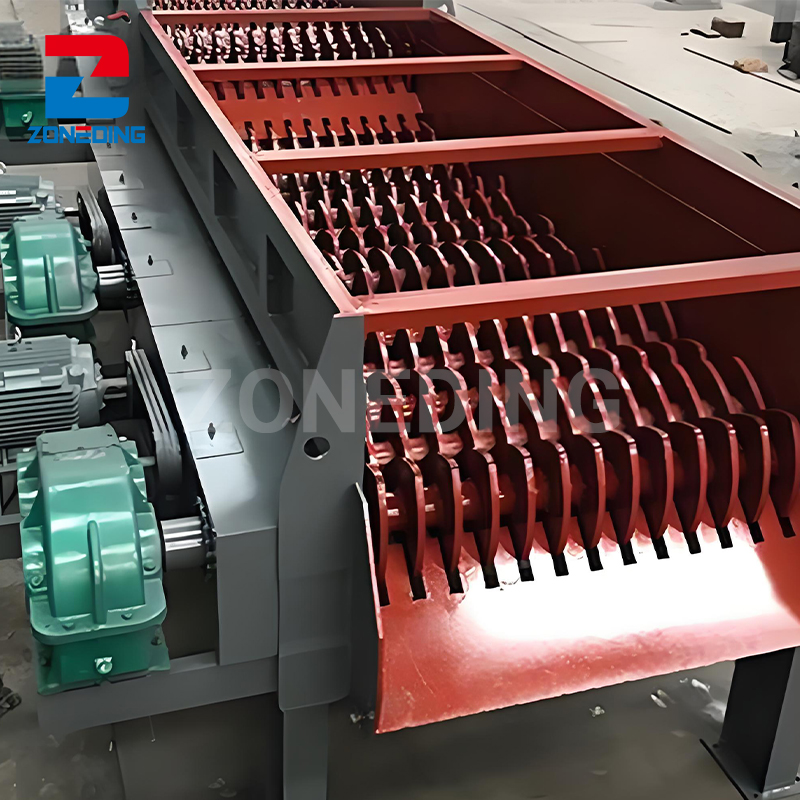

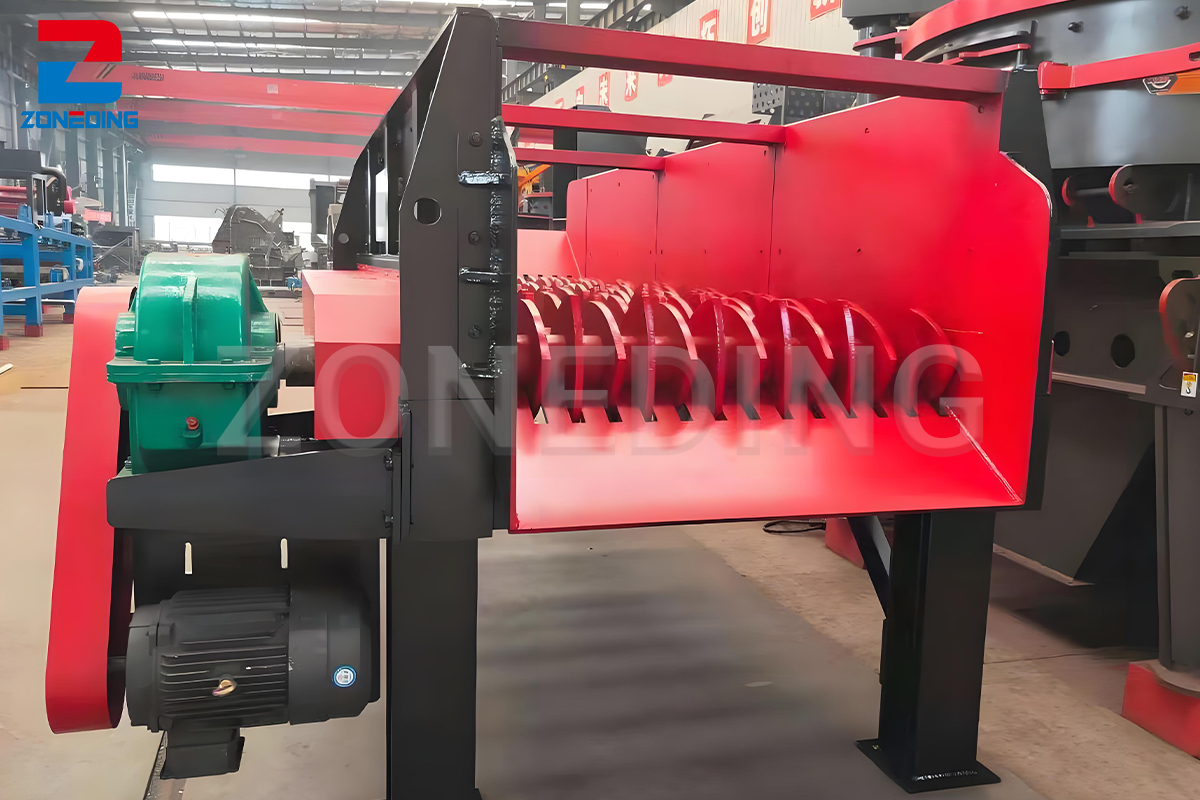

Structure of mud and stone separator:

Application of Mud and stone separator

Mud and stone separator application is applicable to the separation conditions of various stones such as mud rock/sand stone/ore, various domestic wastes, various commercial/industrial wastes, coal, decoration/construction wastes, viscous wet materials, etc.

Technical Parameters of Mud and Stone Separator:

Model	Width(dm)	Length(dm)	Number Of Axes	Number Of Motor	Power(KW)	Capacity(t/h)
0806	08	18	6	1	11	54-144
0808	08	24	8	1	15	72-192
0810	08	30	10	1	18.5	90-240
1010	10	30	10	2	11	112-300
1012	10	36	12	2	15	135-360
1014	10	42	14	2	15	158-420
1212	12	36	12	2	18.5	162-432
1214	12	42	14	2	18.5	189-504
1216	12	48	16	2	22	216-576
1318	13	54	18	3	18.5	263-702
1418	14	54	18	3	18.5	283-756
1518	15	54	18	3	22	303-810
1520	15	60	20	4	18.5	337-900
1620	16	60	20	4	18.5	360-960
1820	18	60	20	5	18.5	405-1080

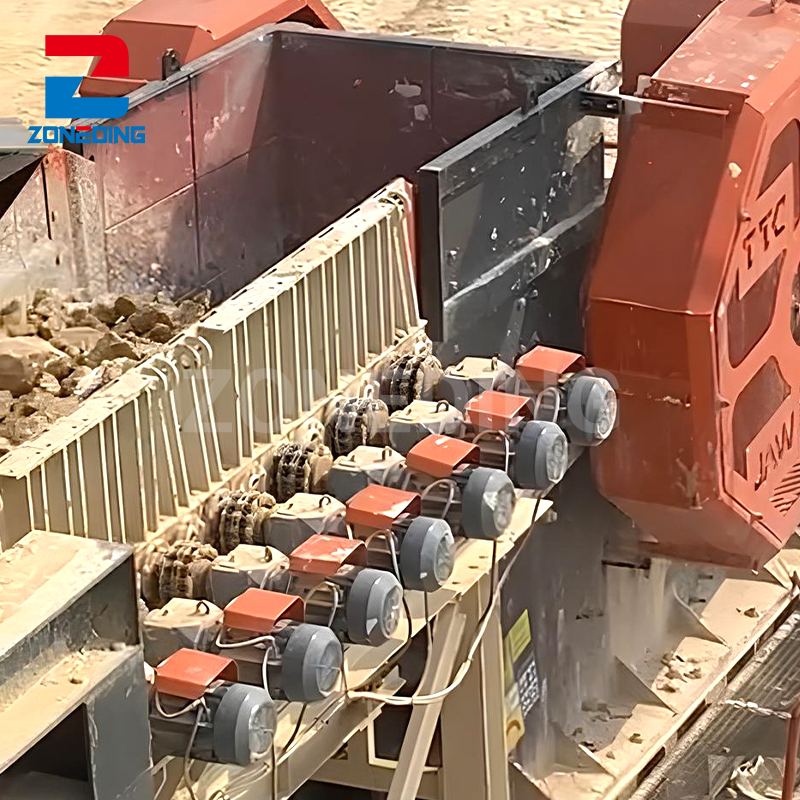

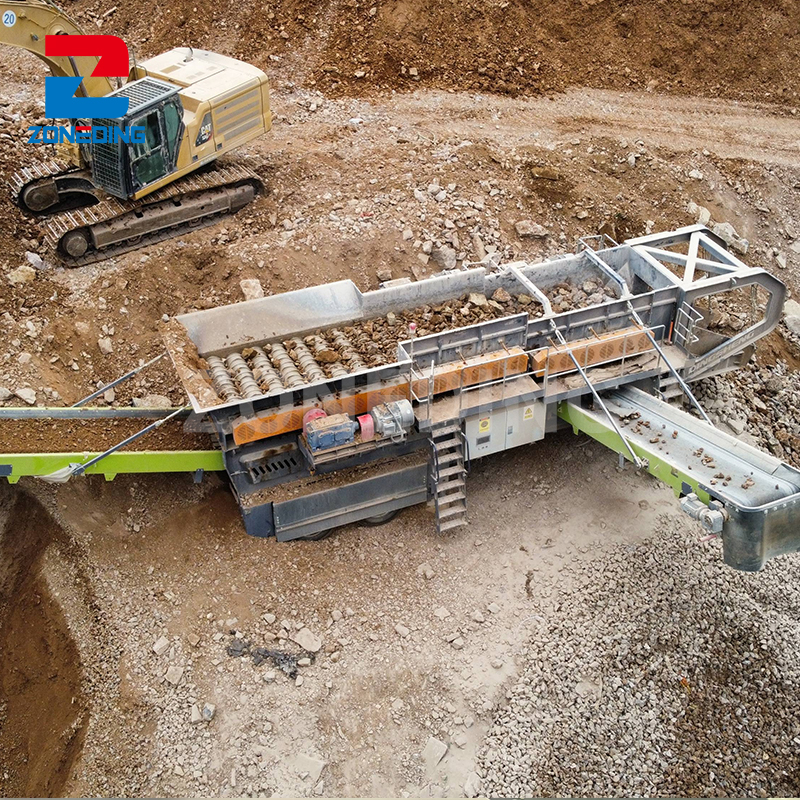

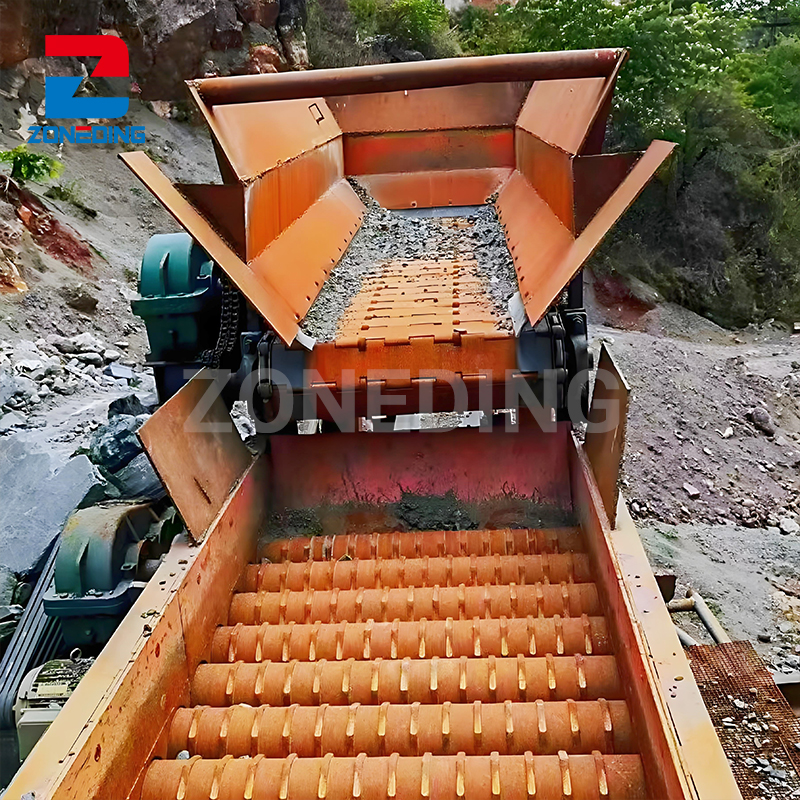

Customer Site

After-sales service

Equipment installation and commissioning: professional technical team to guide the installation and commissioning, to ensure that the equipment is put into operation smoothly.
Technical training: provide comprehensive technical training and operational guidance to ensure that you master the equipment operating skills.
Warranty service: the main parts of the equipment enjoy warranty service, so that you can buy worry-free.
Maintenance support: provide fast response maintenance support services to ensure that equipment failures are resolved in a timely manner.
Parts supply: provide original parts supply service to ensure the continuous and stable operation of the equipment.
