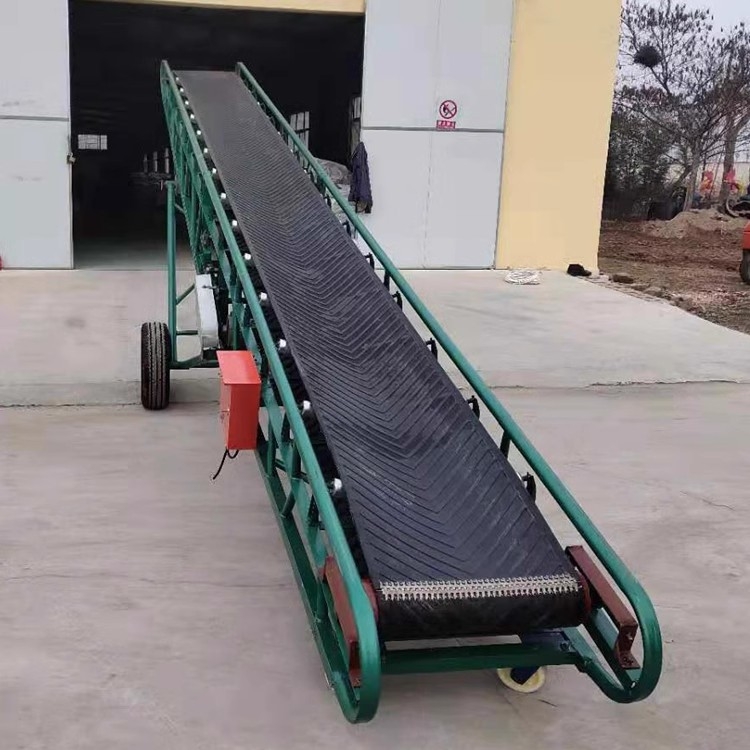

Belt Conveyor

We’re providing belt conveyors mainly for mining applications. It can seamlessly integrate with crushing processing, receiving and handling material from the production line.

Feeding: <800mm
Capacity: 10-350TPH
Application: Material all kinds of ore, waste, tailings, steel slag, etc transport.

Get Quotation

Inquiry online

20-Day Delivery and One-Year Warranty

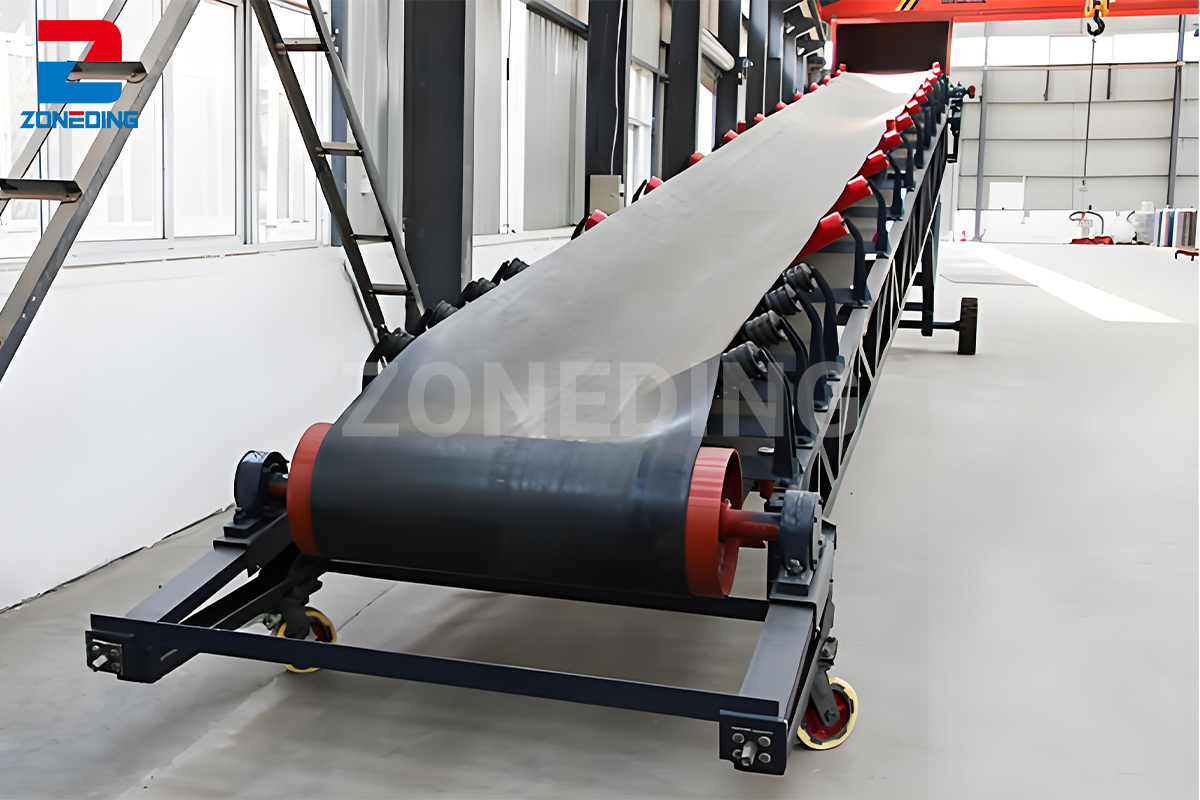

What’s a Belt Conveyor?

We’re providing belt conveyors mainly for mining applications. It can seamlessly integrate with crushing processing, receiving and handling material from the production line.belt conveyors are designed to handle and move mediums in mineral processes, such as material inside a factory and bulk material handling. It also transports large volumes of resources and processed ores, such as gravel, sand, coal, ore, alluvial, overburden, etc.

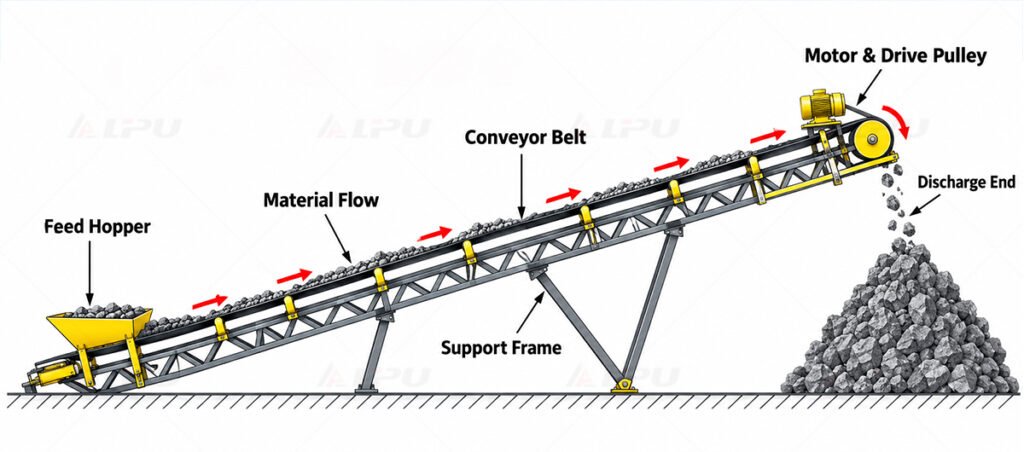

Working Principle Of Belt Conveyor

The belt conveyor mainly comprises two end rollers and a closed conveyor belt tightly sleeved on them. The pulley that drives the conveyor belt to rotate is called a drive pulley (drive pulley); the other pulley that only changes the direction of movement of the conveyor belt is called a reversing pulley.

Material is fed on the feed-side and lands on the rotating conveyor belt, which relies on the conveyor belt friction to deliver to the discharge end. It has the advantages of strong conveying capacity, long conveying distance, large transport volume and continuous conveying.

Advantages Of Belt Conveyor

Made of durable materials such as metal steel, reinforced plastic, or wood for long service life;
Trough Feeder designs can be customized and easily maintained to meet the specific requirements of different mining applications;
Integrate with other conveyor systems for seamless material handling within mining facilities.
The angle of the trough is adjustable, allowing the operator to control the flow characteristics of the material being conveyed.

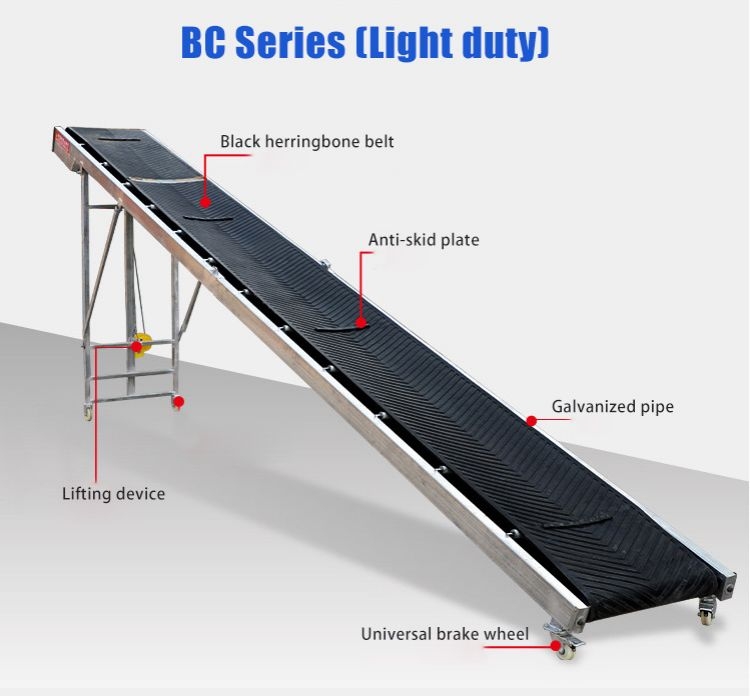

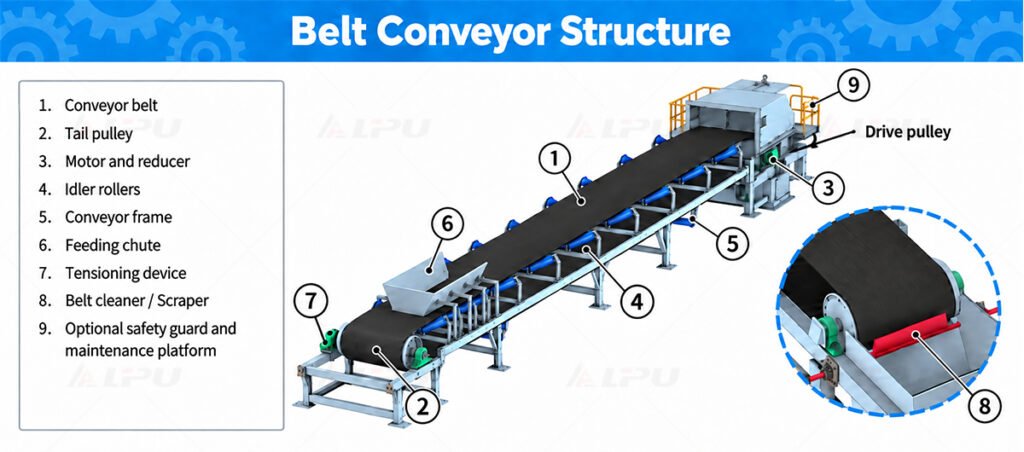

Structure

troughed belt conveyor consists of a wide belt typically running on three idler rolls. The outer wing rollers are sloped upwards to form the trough shape. The troughed belt then travels over the idler sets to transport the load. A conventional troughed belt conveyor has the following components.

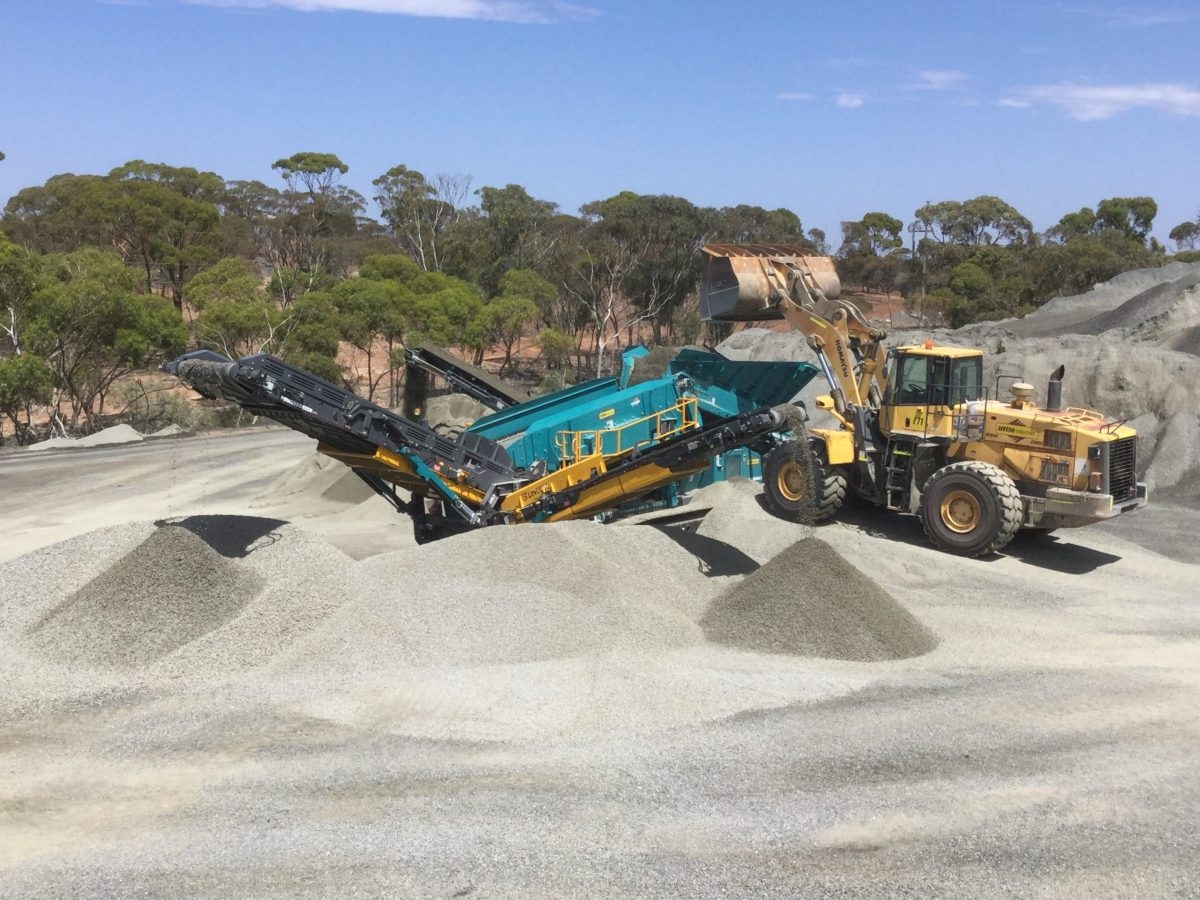

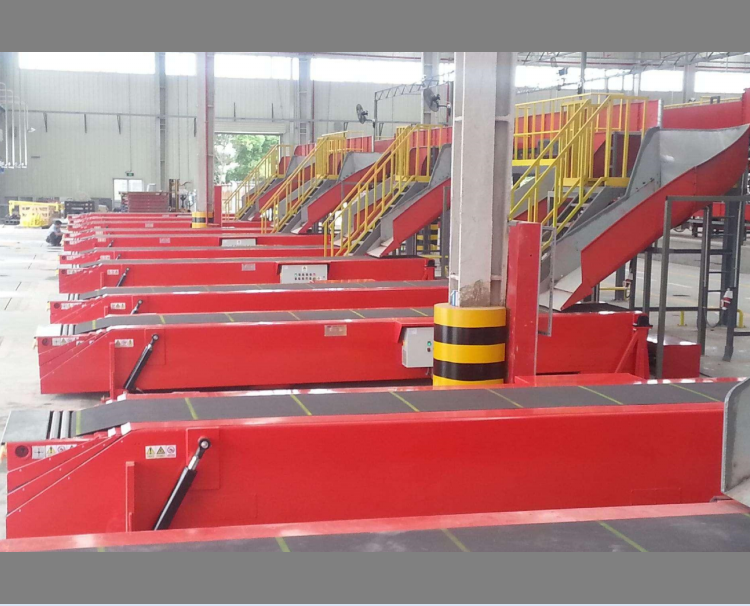

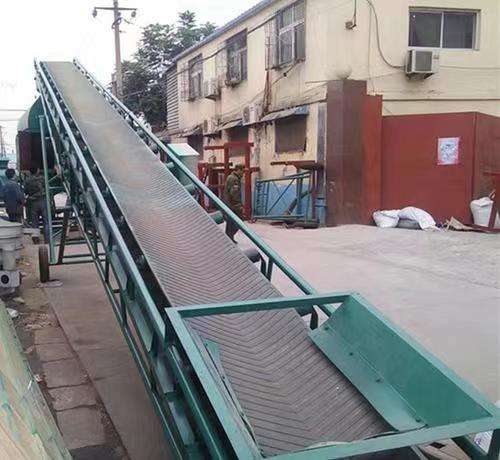

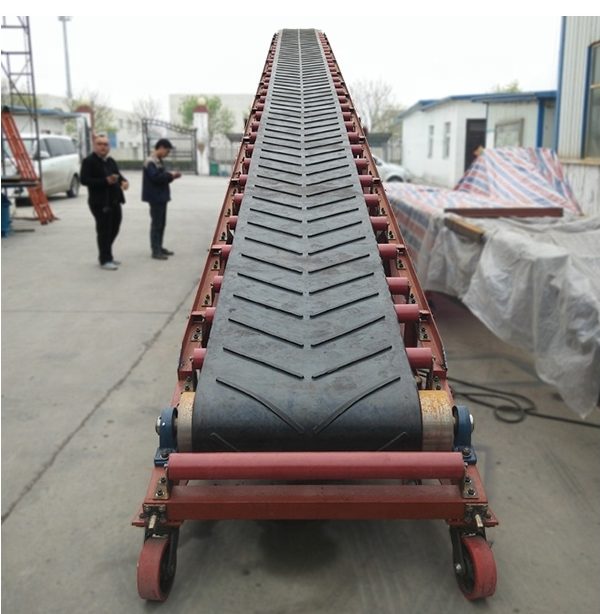

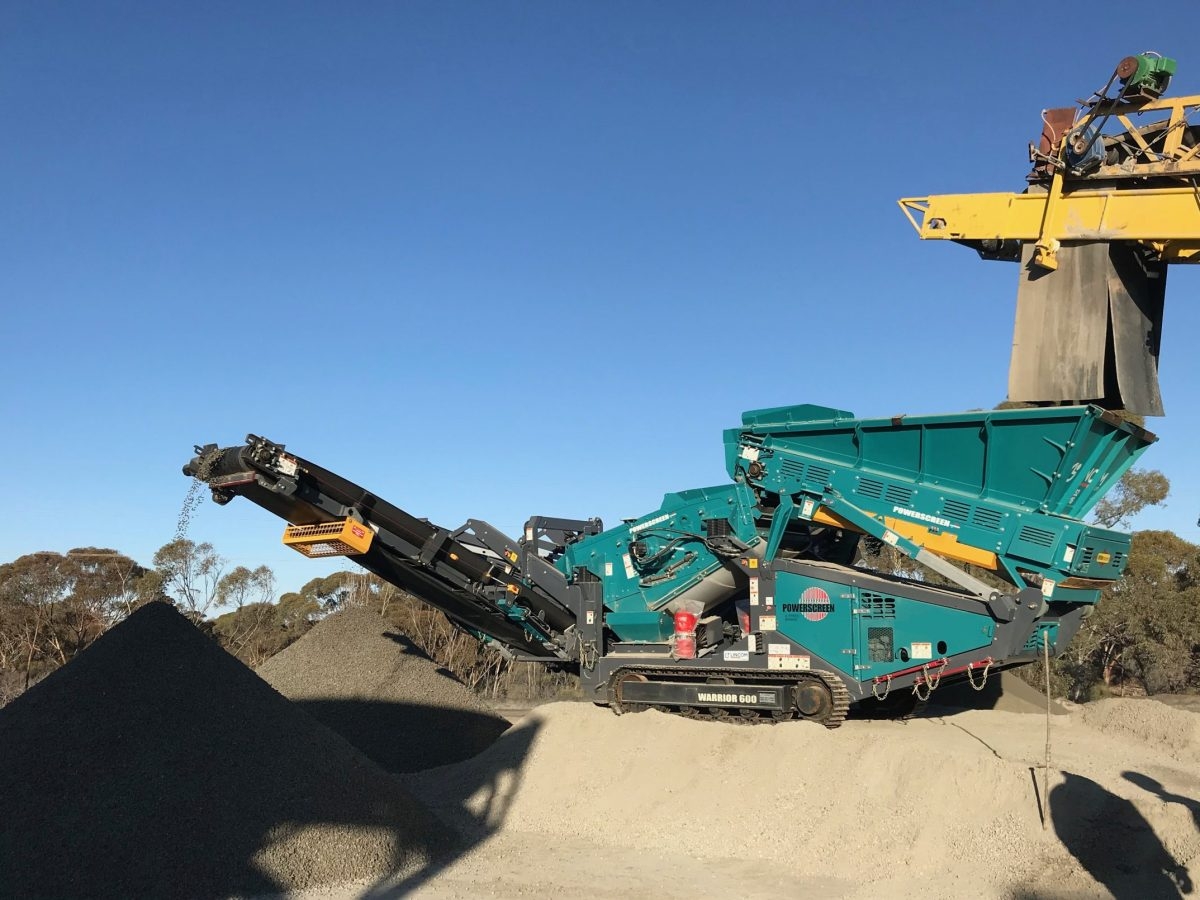

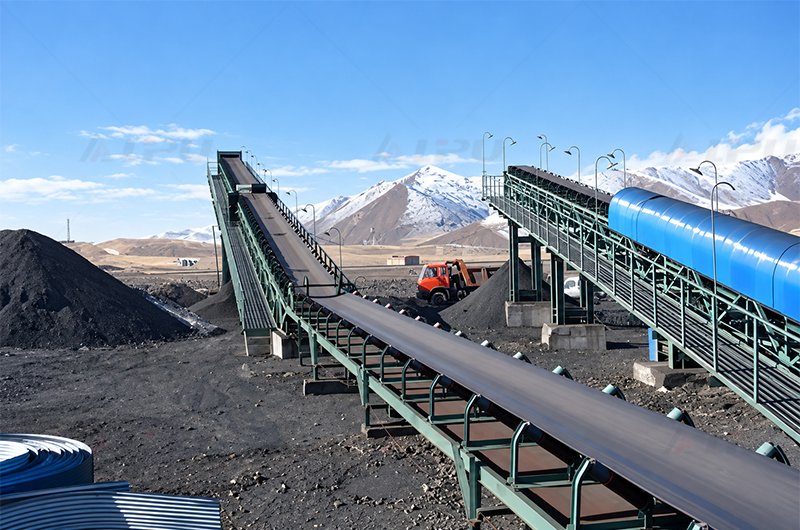

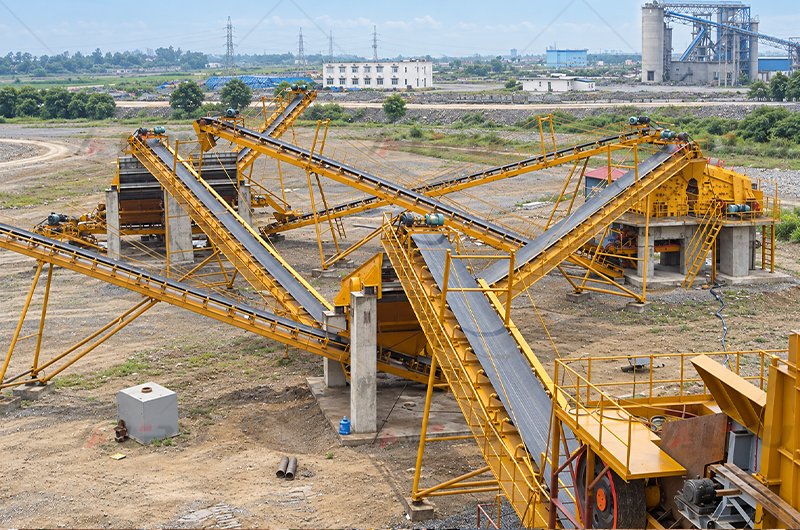

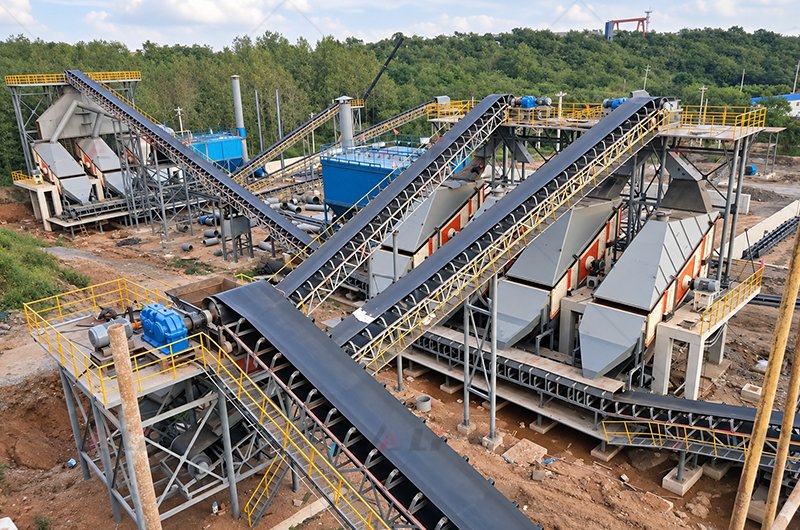

Customer site

Specification

Model	Capacity (t/h)	Max length (m)	Belt width (mm)	Speed (m/s)	Upper slope (°)	Power (kw)	Drum dia (mm)	Roller Dia (mm)
DT75-500	87	20	500	1	<20	5.5	500	89
DT75-650	127	20	650	1	<20	7.5	500	89
DT75-800	198	15	800	1	<20	7.5	630	89
DT75-1000	507	20	1000	1.25	<20	11	800	108
DT75-1200	742	20	1200	1.25	<20	15	1000	108
DT75-1400	1032	30	1400	1.25	<20	22	1000	133
