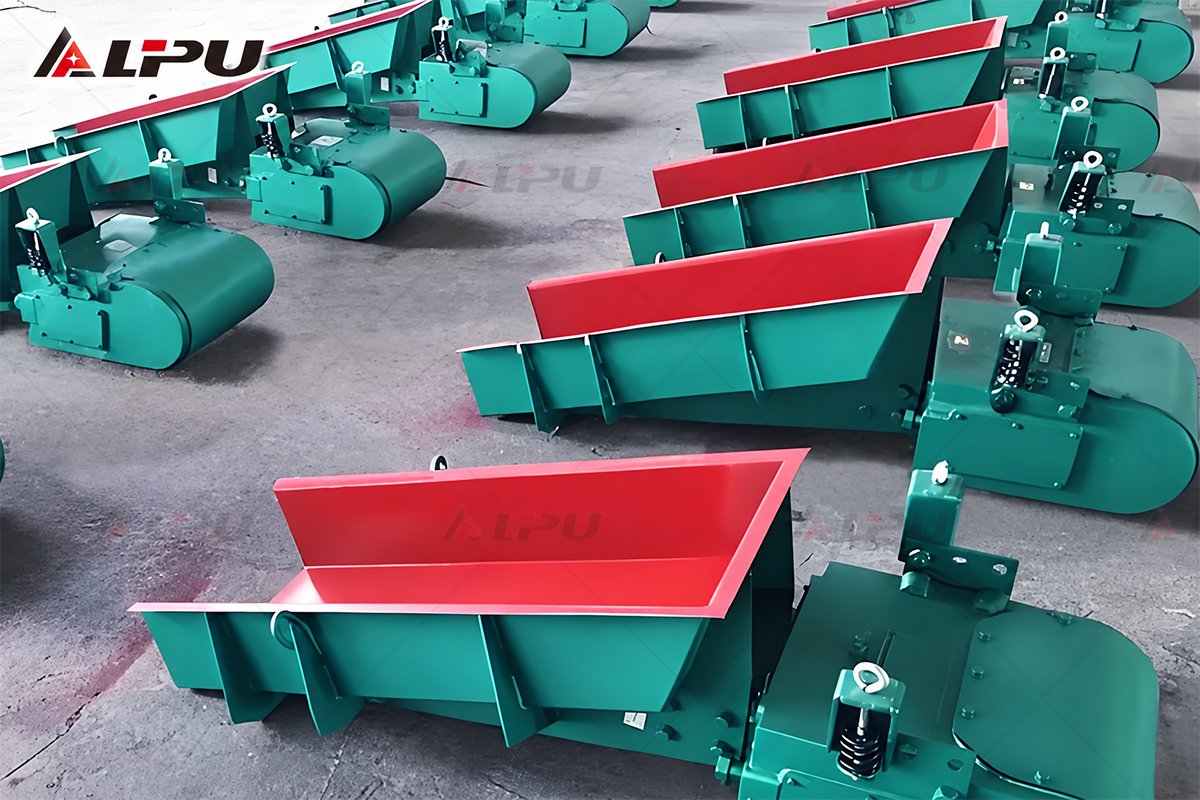

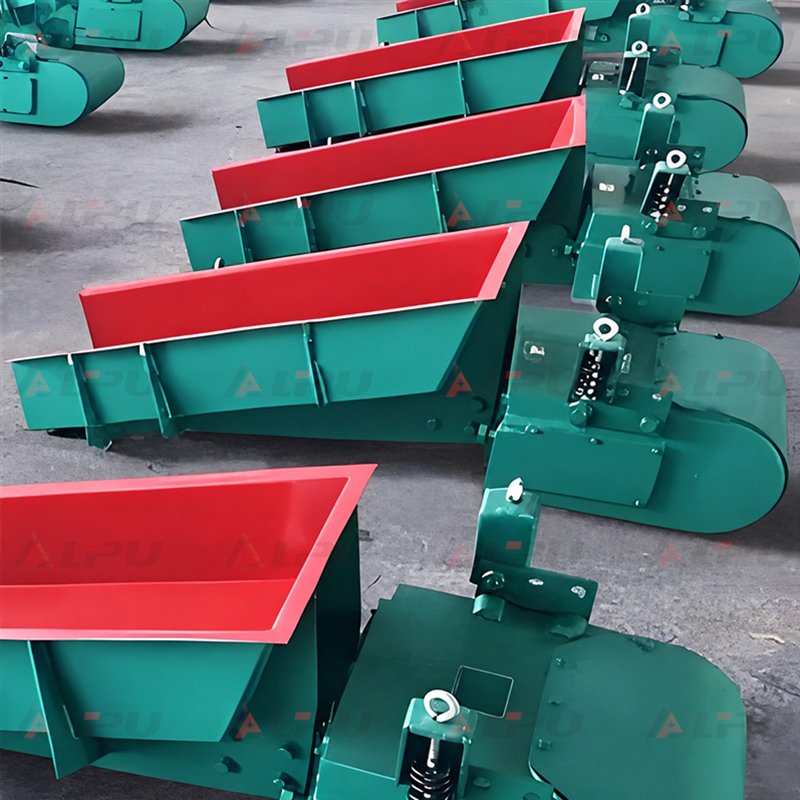

Electromagnetic Vibrating Feeder

An electromagnetic vibrating feeder is an auxiliary equipment for transporting materials.

Applicable industries: Electromagnetic vibrating feeders are widely used in mining, metallurgy, coal, electronics, machinery, chemical industry, building materials, light industry, food and other industries.
Applicable materials: The electromagnetic vibrating feeder can transport ore, coal powder, cement, clinker, limestone, granular and block materials.

20-Day Delivery and One-Year Warranty

What’s a Electromagnetic Vibrating Feeder?

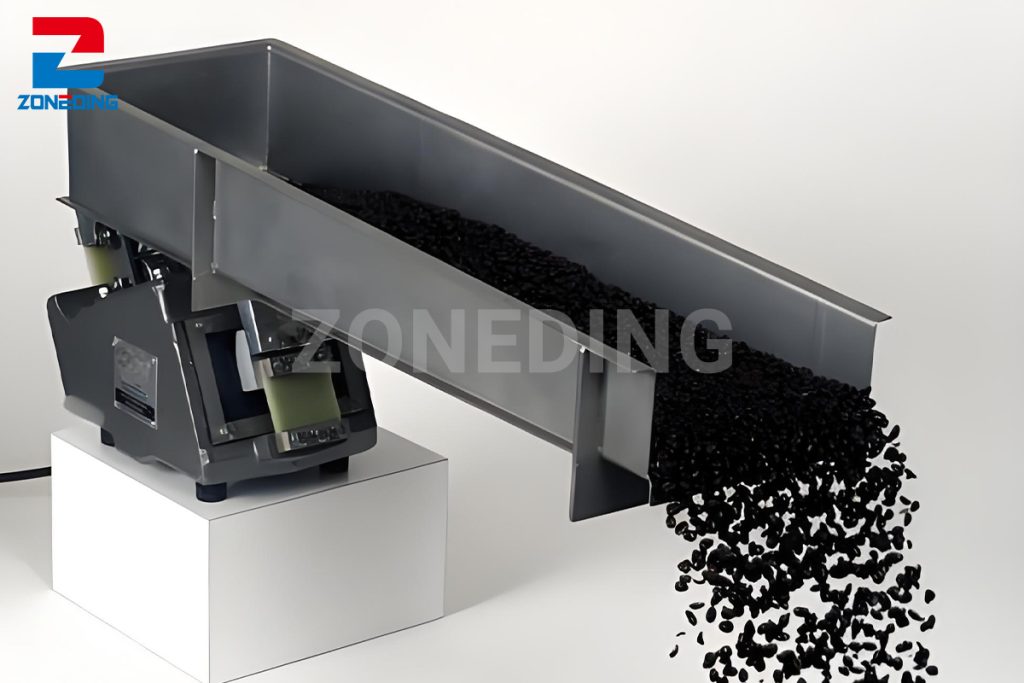

An electromagnetic vibrating feeder is an auxiliary equipment for transporting materials. In production, block, granular, and powdery materials are quantitatively, evenly, and continuously fed from the storage bin or funnel to the receiving device. An electromagnetic vibrating feeder uses high-frequency linear reciprocating vibration to feed materials. It is an essential equipment for the automation of flow operations. For example, it can feed materials to Belt Conveyors, bucket elevators, screening equipment, etc.; it can feed materials to crushers, pulverizers, etc., and it can also be used for automatic batching, quantitative packaging, etc. It can be used in automatic control processes to realize the automation of production processes.

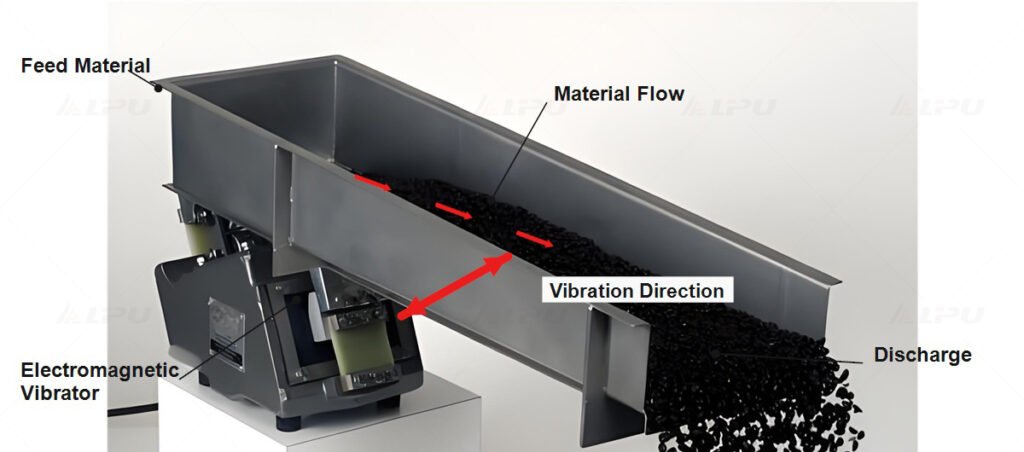

Working Principle Of Electromagnetic Vibrating Feeder

The electromagnetic vibrating feeder uses the principle of mechanical dynamics, and the electromagnetic vibrator drives the feed trough to move periodically along the direction of the trough. When an electromagnetic coil is energized, a magnetic field is produced. This field attracts and repels the armature, causing the tray or slot to vibrate. The vibrations are transmitted to the bulk material, causing it to move forward along the pallet. The frequency and amplitude of vibration can be adjusted to control the flow of material. Finally, the material is evenly transported to the receiving device.

Advantages Of Electromagnetic Vibrating Feeder

Electromagnetic vibrating feeder is small in size, light in weight, simple in structure, and easy to install;
Low power consumption, no rotating parts requiring no lubrication, easy maintenance, and low operating costs;
The material flow can be changed and opened and closed instantaneously, so the feeding amount is highly accurate;
The closed structure body can prevent dust pollution;
The electromagnetic vibrating feeder can adjust the feeding amount and realize centralized control and automatic control of the production process.

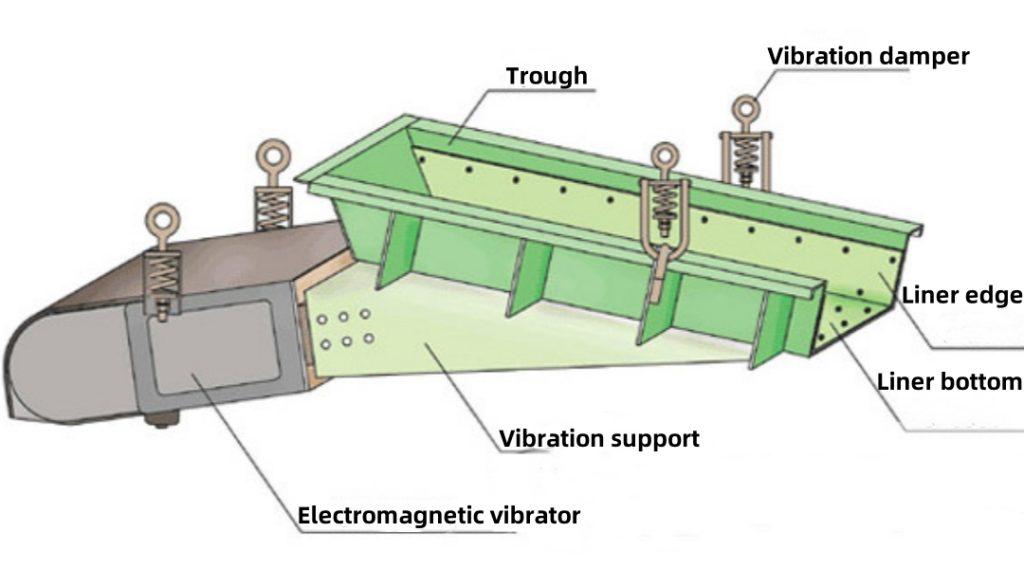

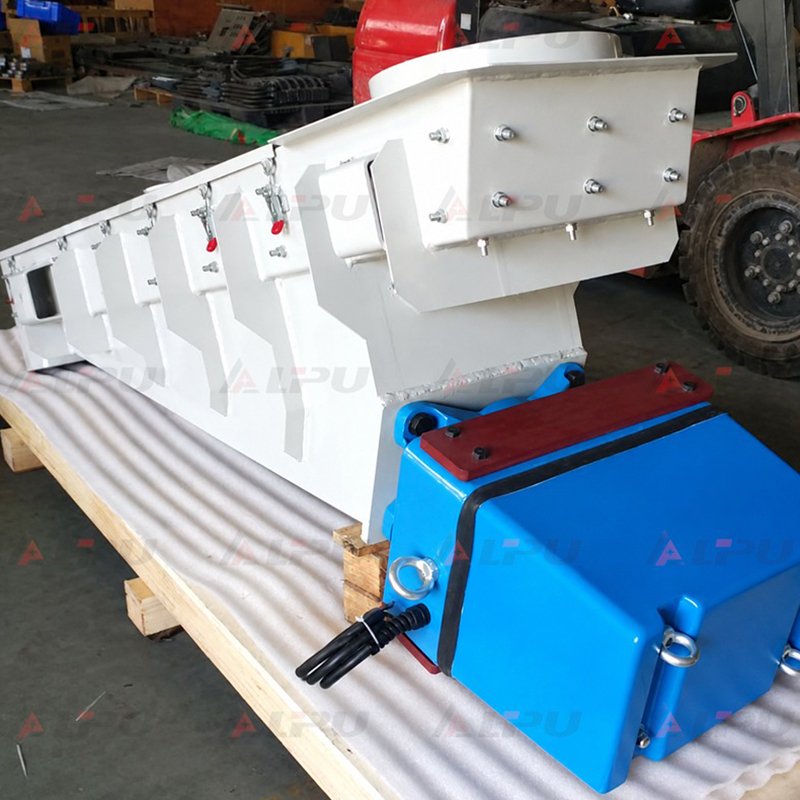

Structure

The structure of electromagnetic vibrating feeder mainly includes electromagnetic exciter, feeding trough, adjusting device, supporting fixed structure and electrical control system. Electromagnetic exciter generates vibration, feed chute conveys materials, regulating device controls the feeding quantity, supporting and fixing structure ensures stable operation, and electrical control system realises safe and reliable operation. These components work together to achieve a smooth and continuous feeding process.

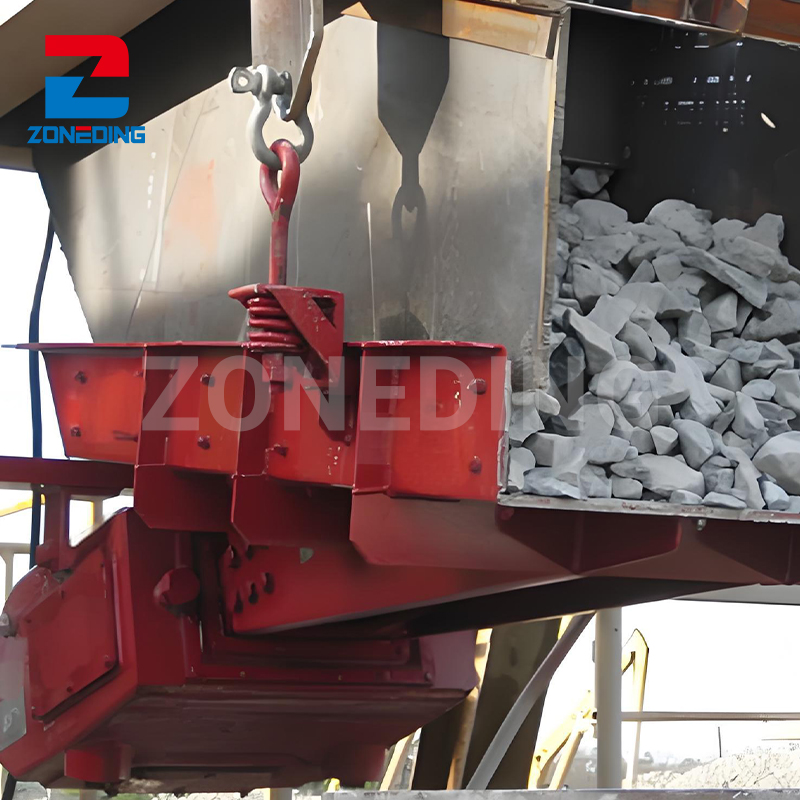

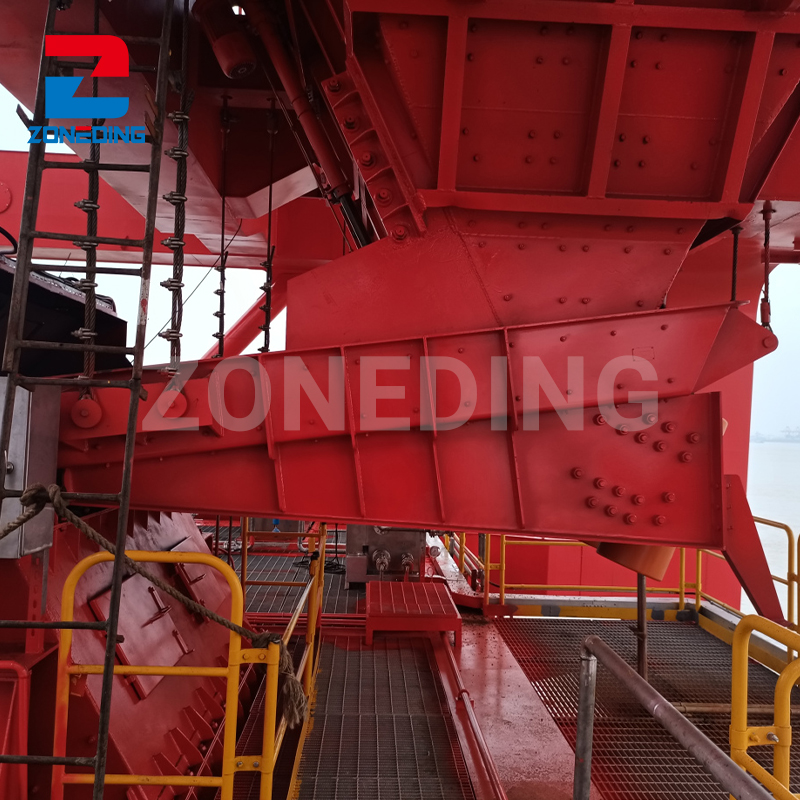

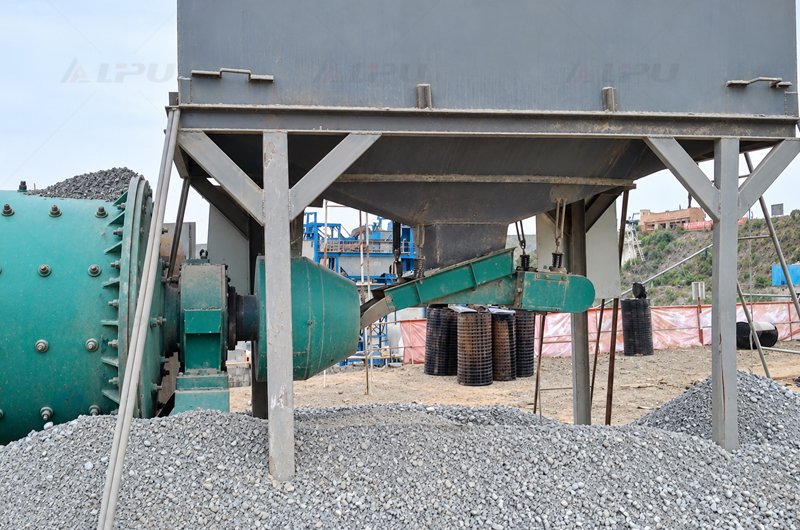

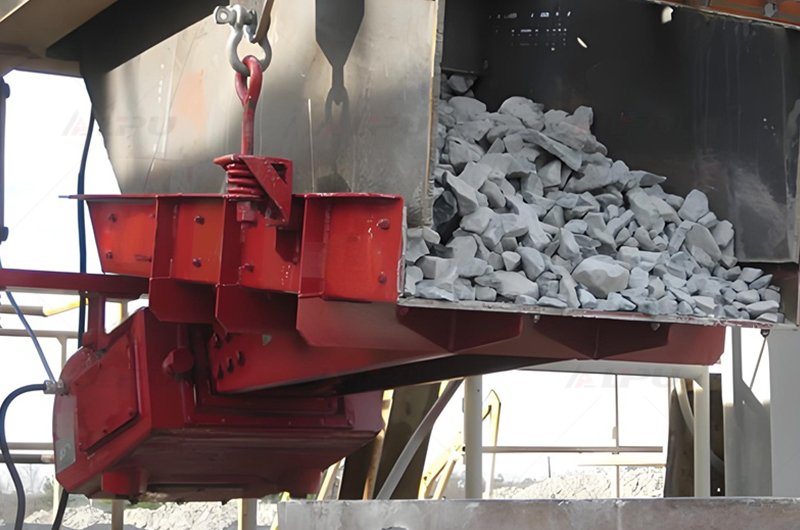

Customer site

Specification

Model	Discharge chute size length x width x height(mm)	Max Feeding Size(mm)	Feeding Capacity (t/h)	220	Motor Power (kw)	Weight (kg)	Overall dimensions length x width x height(mm)
GZ1	600×200×100	50	5-10	220	0.06	80	910×376×485
GZ2	800×300×120	50	10-20	220	0.15	165.5	1175×608×600
GZ3	900×400×150	75	20-30	220	0.2	223	1325×578×675
GZ4	1100×500×200	100	30-50	220	0.45	462	1616×762×814
GZ5	1200×700×250	150	50-100	220	0.65	656	1815×840×980
GZ6	1600×900×250	200	100-150	380	1.5	1252	2410×1092×1500
