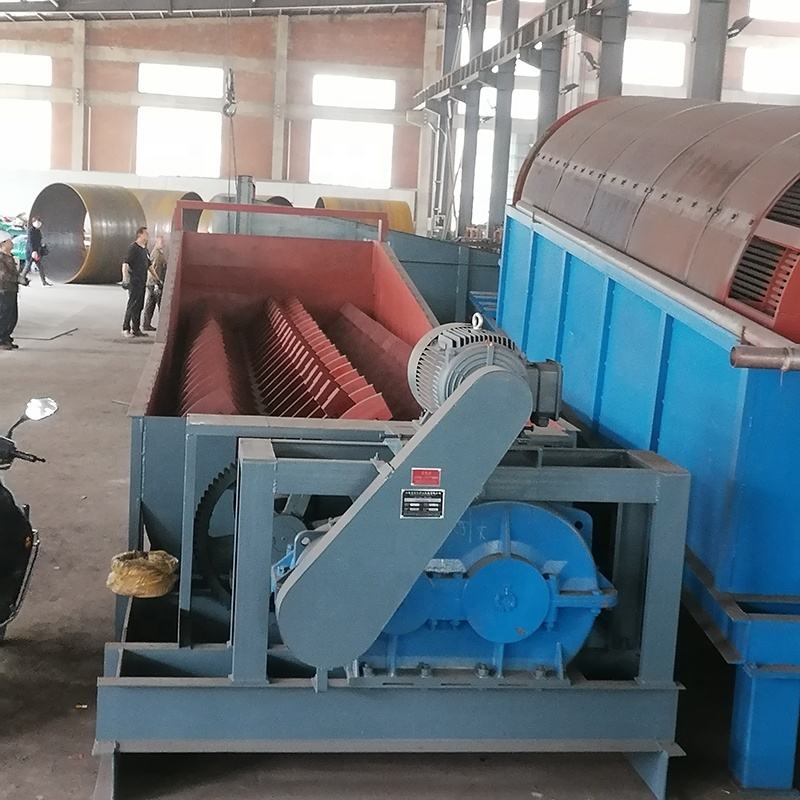

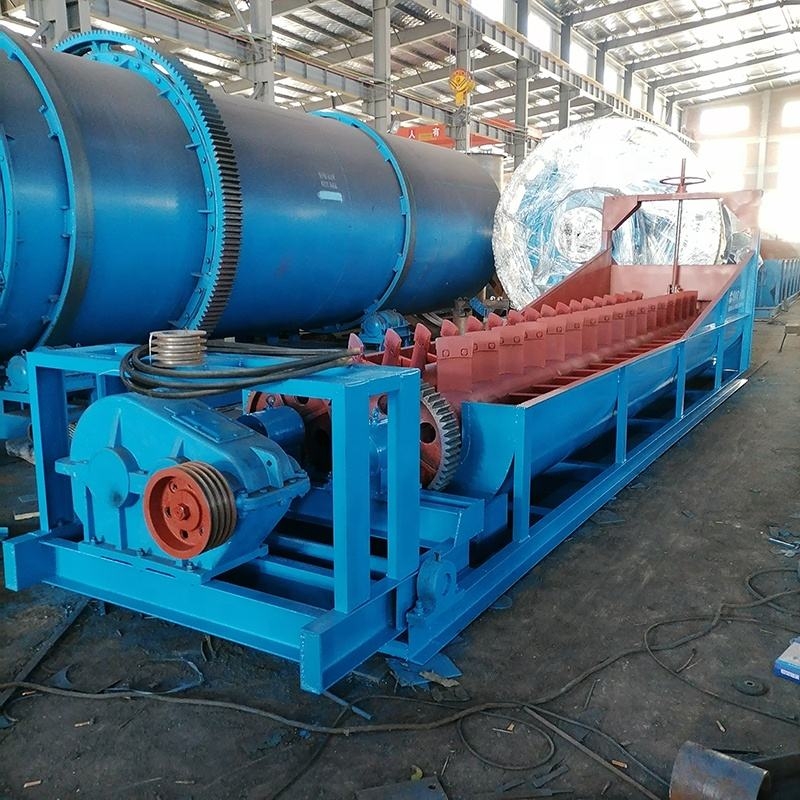

Log washer or trough washing machine is a kind of ore washing equipment widely used in various large pieces of easy-to-wash and hard-to-wash clay, mud or soft ore/stone.
Log washer or trough washing machine is a kind of ore washing equipment widely used in various large pieces of easy-to-wash and hard-to-wash clay, mud or soft ore/stone. Such include washing and separating mud in ferrous and non-ferrous metal mines, construction, sand and gravel, stone plants, etc. We can provide single/double shaft log washers, which are especially effective for breaking up viscous mud and stone material, and the washing and desliming effects are very significant. Its processing capacity is large, and it is an ideal washing equipment for enterprises that meet high productivity requirements on the cleanliness of ores and stones. Log washer is usually set before crushing, gravity separation, magnetic separation and flotation operations to eliminate the impact of ore sludge on these operations, improve operation efficiency and obtain good separation indicators.
The log washer realizes ore separation and washing by gravity, water flow and vibration.

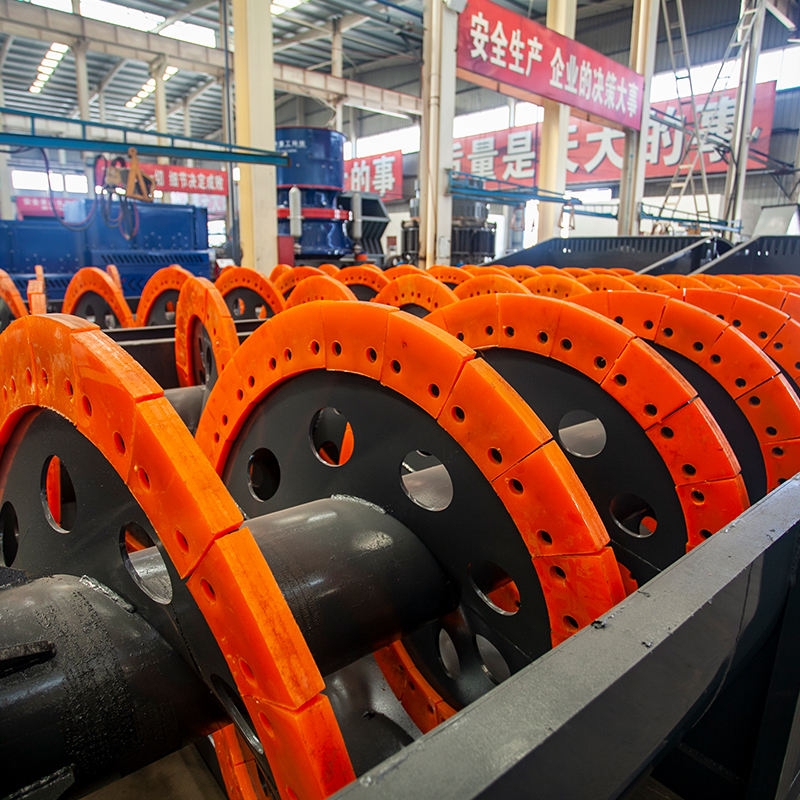

The ore and water enter the tank from the feed port, and are agitated by the screw shaft impeller to achieve the purpose of ore cleaning, stirring and transportation. The force of the water flow will wash away the lighter impurities and mud; while the heavier ore will be deposited at the bottom of the tank and discharged from the discharge port.

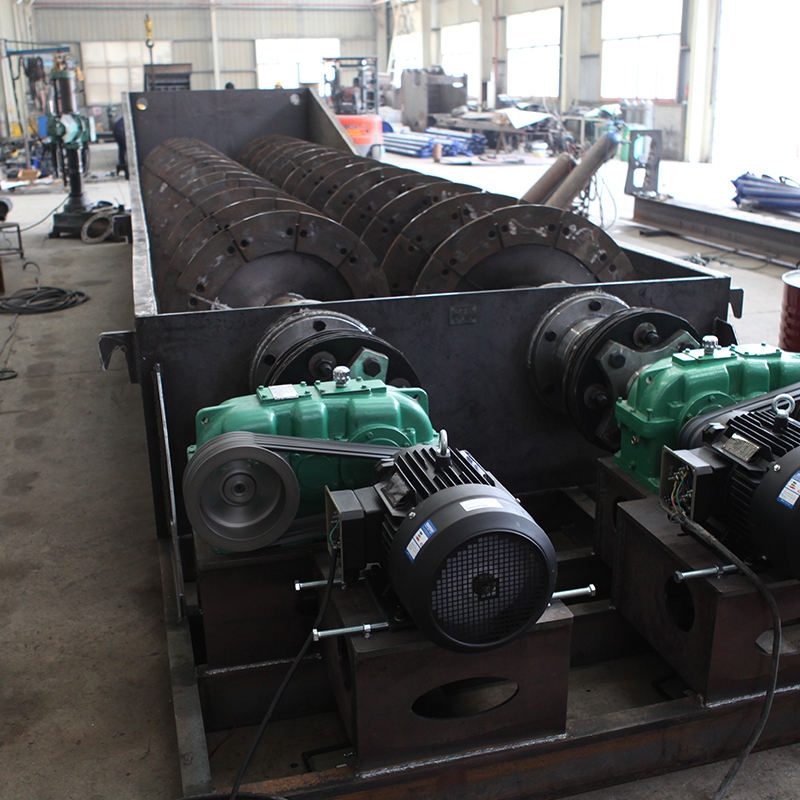

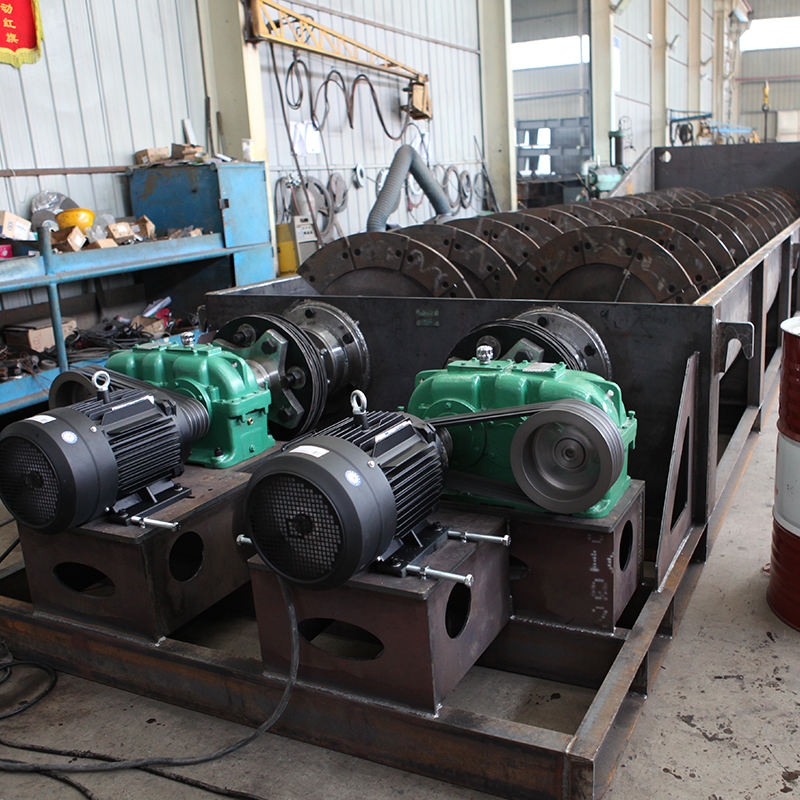

Log Washer mainly consists of feed inlet, washing area, drive system, discharge outlet and drainage system to clean the material by spraying water or brushing and discharging wastewater to fulfil the material cleaning function. Some models may also be equipped with dust and noise control devices.

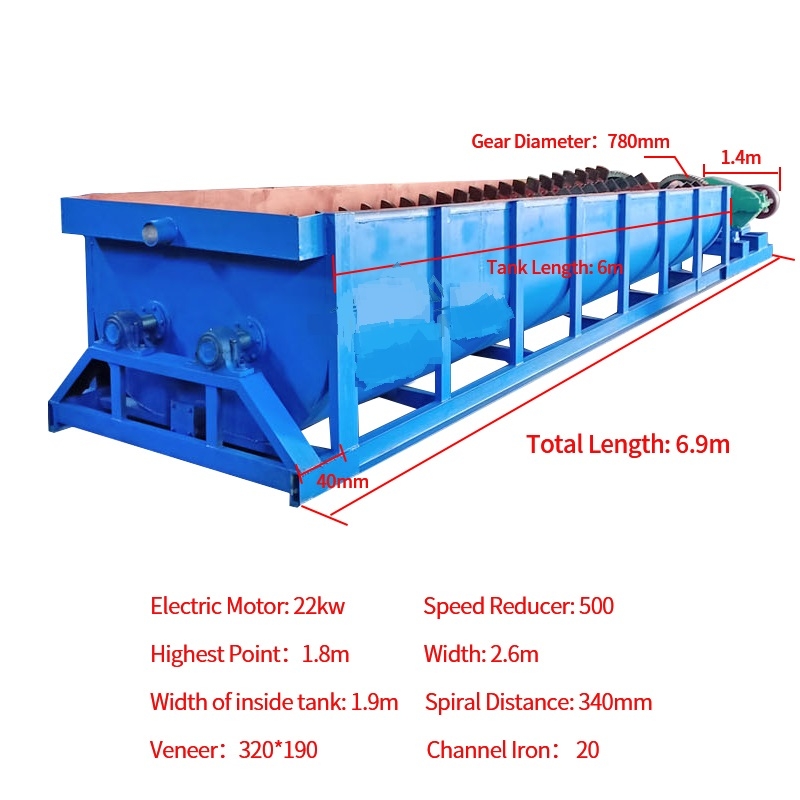

| Model | Spiral Dia. (mm) | Rotating Speed (r/min) | Feeding Size (mm) | Tank Slope (o) | Process Capacity (t/h) | Motor Power(kw) | Weight (T) |
| 2RXL320 | 750 | 28 | ≤30 | ≤12 | 10 | 4 | 0.9 |
| 2RXL400 | 750 | 23 | ≤30 | ≤12 | 20 | 5.5 | 1.9 |
| 2RXL540 | 1000 | 23 | ≤30 | ≤12 | 25 | 7.5 | 3.9 |
| 2RXL750 | 1000 | 22.7 | ≤70 | ≤12 | 50 | 40 | 17.2 |
| 2RXL800 | 1200 | 22 | ≤70 | ≤12 | 70 | 45 | 18.9 |
| 2RXL914 | 1200 | 21 | ≤70 | ≤12 | 100 | 55 | 23 |
